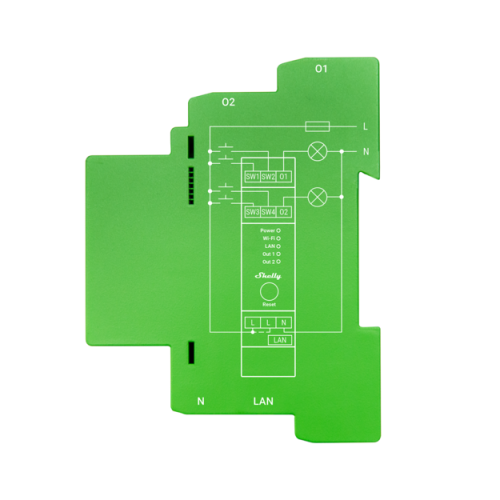

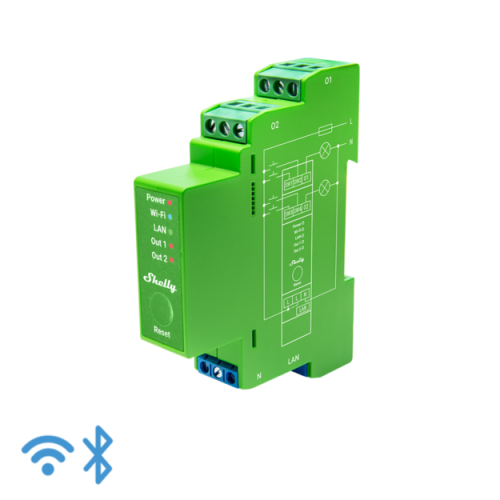

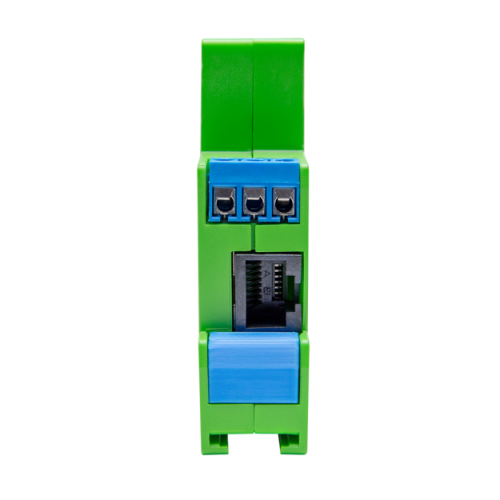

Shelly Pro Dimmer 2 2-channel dimming module

Brand: Shelly
Product Code: Shelly Pro Dimmer 2
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2025-02-14

86.40€
Ex Tax: 71.41€

Qty

Add to Wish List

Description Product Delivery

Professional 2-channel DIN rail smart dimmer with power monitoring

LAN, Wi-Fi, and Bluetooth connection
Power metering
Free storage data (using Shelly App)
Night mode for lower brightness during night hours
Automatic dimming calibration
Switch/button input mode
Use with your existing switches (one/dual button control)
Adjustable min/max brightness
Adjustable button fade rate and transition time
No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant, or your preferred automation platform
Wi-Fi Range Extender & BLE Gateway
Extremely fast processor for immediate reaction - ESP32
Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates

SPECIFICATIONS

Dimensions (LxWxH) 94x19x69 mm / 3.70x0.75x2.71 in
Weight 75 g / 2.7 oz
Ambient temperature -20 °C to 40 °C / -4 °F to 104 °F
Humidity 30 % to 70 % RH
Max. altitude 2000 m / 6562 ft
Screw terminals max torque 0.4 Nm / 3.5 lbin
Conductor cross section 0.5 to 2.5 mm2 / 20 to 14 AWG (green connectors)0.5 to 1.5 mm2 / 20 to 16 AWG (blue connector) (solid, strand-ed, and bootlace ferrules)
Conductor stripped length 6 to 7 mm / 0.24 to 0.28 in (green connectors) 5 to 6 mm / 0.20 to 0.24 in (blue connector)
Power supply 110-240 V~ 50/60 Hz
Power consumption < 2 W
External protection max. 10 A, tripping characteristic B or C,6 kA interrupting rating, energy limiting class 3
Dimming type Trailing edge

SUPPORTED LOAD TYPES

HV LED lamps (Dimmable) 200 W
Dimmable electronic transformers 200 W
Incandescent Light bulbs 200 W
HV halogen lamp 200 W
Wound transformer 200 VA
DIMMABLE LED AND CFL - DIMMABLE ELECTRONIC TRANSFORMERS
RF band 2400 - 2495 MHz
Max. RF power < 20 dBm
Wi-Fi protocol 802.11 b/g/n
Wi-Fi operational range (depending on local conditions) up to 50 m / 160 ft outdoors up to 30 m / 100 ft indoors
Bluetooth protocol 4.2
Bluetooth operational range (depending on local conditions) up to 30 m / 100 ft outdoors up to 10 m / 33 ft indoors
CPU ESP32-D0WDQ6
Flash 8 MB
Schedules 20
Webhooks (URL actions) 20 with 5 URLs per hook
Scripting Yes
MQTT Yes
