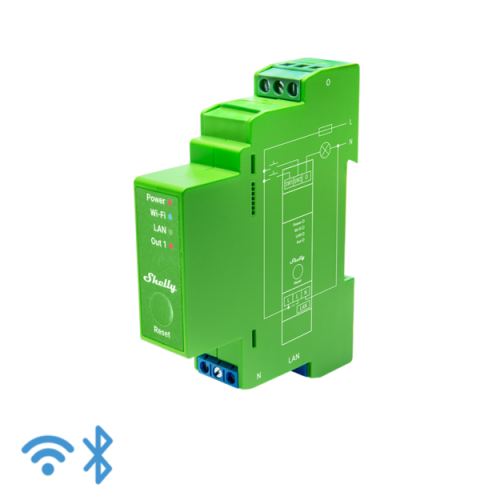

Shelly Pro Dimmer 1 1-channel dimming module

Brand: Shelly
Product Code: Shelly Pro Dimmer 1
Availability: 4-7 business days
Planuojama gavimo data po užsakymo: 2025-05-12
74.50€
Ex Tax: 61.57€

Qty

Professional 1-channel DIN rail smart dimmer with power monitoring

  • LAN, Wi-Fi, and Bluetooth connection
  • Power metering
  • Free storage data (using Shelly App)
  • Night mode for lower brightness during night hours
  • Automatic dimming calibration
  • Switch/button input mode
  • Use with your existing switches (one/dual button control)
  • Adjustable min/max brightness
  • Adjustable button fade rate and transition time
  • No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant, or your preferred automation platform
  • Wi-Fi Range Extender & BLE Gateway
  • Extremely fast processor for immediate reaction - ESP32
  • Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates
SPECIFICATIONS

  • Dimensions (LxWxH): 94x19x69 mm / 3.70x0.75x2.71 in
  • Weight: 75 g / 2.7 oz
  • Ambient temperature: -20 °C to 40 °C / -4 °F to 104 °F
  • Humidity: 30 % to 70 % RH
  • Max. altitude: 2000 m / 6562 ft
  • Screw terminals max torque: 0.4 Nm / 3.5 lbin
  • Conductor cross section: 0.5 to 2.5 mm2 / 20 to 14 AWG (green connectors), 0.5 to 1.5 mm2 / 20 to 16 AWG (blue connector) (solid, stranded, and bootlace ferrules)
  • Conductor stripped length: 6 to 7 mm / 0.24 to 0.28 in (green connectors), 5 to 6 mm / 0.20 to 0.24 in (blue connector)
  • Power supply: 110-240 V~ 50/60 Hz
  • Power consumption: < 2 W
  • External protection: max. 10 A, tripping characteristic B or C, 6 kA interrupting rating, energy limiting class 3
  • Supported load types:
  • HV LED lamps (Dimmable): 200 W
  • Dimmable electronic transformers: 180 W
  • HV LED lamps (Non Dimmable): 110 W (On/Off mode)
  • Incandescent Light bulbs: 200 W
  • HV halogen lamp: 200 W
  • Wound transformer: 200 VA
  • CFL: 50 W
  • Dimming type: Trailing edge
  • RF band: 2400 - 2495 MHz
  • Max. RF power: < 20 dBm
  • Wi-Fi protocol: 802.11 b/g/n
  • Wi-Fi operational range (depending on local conditions): up to 50 m / 160 ft outdoors, up to 30 m / 100 ft indoors
  • Bluetooth protocol: 4.2
  • Bluetooth operational range (depending on local conditions): up to 30 m / 100 ft outdoors, up to 10 m / 33 ft indoors
  • CPU: ESP32-D0WDQ6
  • Flash: 8 MB
  • Schedules: 20
  • Webhooks (URL actions): 20 with 5 URLs per hook
  • Scripting: Yes
  • MQTT: Yes
