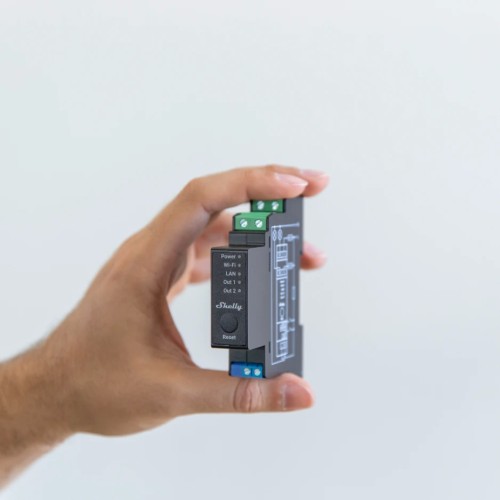

Shelly Pro 2PM Professional 2-channel DIN rail smart switch with power metering & cover (roller shutter) control

Brand: Shelly
Product Code: Shelly PRO 2PM
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2025-03-14
109.90€
Ex Tax: 90.83€

Qty

Shelly Pro 2PM is a one-phase, 2-channel relay, supporting up to 16 A per channel with a total device capacity of 25 A. Shelly Pro 2PM is equipped with two integrated precise power meters that allow customers to control and monitor the consumption for each channel separately. It supports two-directional motor control, which makes it perfect for the automation of roller shutters, curtains, awnings, gates, and many more. Use scripting functionalities to set custom automation scenes based on various occurrences, weather forecasts, wind forecasts, etc.
Enhanced with temperature, overpower, and overvoltage load protection, the Shelly Pro series is designed to be installed inside the breaker box (DIN). Allowing full smart automation with no additional cables or wiring, the Shelly Pro line is perfect for homes, offices, stores, businesses, and manufacturing facilities, as well as new buildings.

Main features:

  • LAN, Wi-Fi, and Bluetooth connection
  • 2 outputs, 16 A each. Total device maximum of 25 A
  • Power metering on each channel and free storage data
  • Cover (roller) control - roller shutters, awnings, gates, barriers, sliding doors, curtains, garage doors, bi-directional AC motors
  • 1-phase control
  • Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants

Specification:

  • Power supply AC: 110-230 V ±10%, 50/60 Hz
  • Maximum load: 2 outputs, 16 A each. Total device maximum of 25 A
  • Power supply DC: 12 V DC ±10%
  • Channels: 2 Channel
  • Roller shutter mode: Yes, with position control (roller shutters, gates, curtains, garage doors, awnings, bi-directional AC motors)
  • Device temperature protection: Yes
  • Overload protection: Yes
  • Power measurement: Yes
  • HTTP/HTTPS: Yes
  • Custom scripts (mJs): Yes
  • Operational temperature: -20 °C to 40 °C
  • Device power consumption: < 4 W
  • Intelligent On/Off: Yes
  • Local and remote control: Yes
  • Sunrise/Sunset: Yes
  • Weekly Schedule: Yes
  • UL Listed option: No
  • Wireless: Yes
  • Wi-Fi Protocol: 802.11 b/g/n
  • Wi-Fi Radio frequency: 2412 – 2484 MHz
  • Wi-Fi Radio signal power: 1 mW
  • Wi-Fi Range: up to 50 m outdoors and up to 30 m indoors (depending on the building materials)
  • Bluetooth: Yes
  • Ethernet: Yes
  • Size: 18,5 mm x 89,5 mm x 68,5 mm
