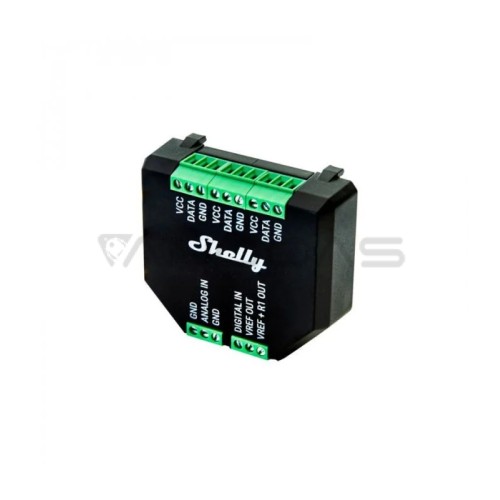

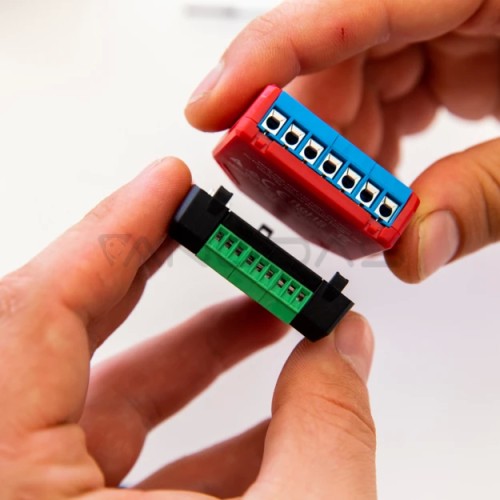

Shelly Plus Add-On for Shelly Plus devices

Shelly Plus Add-on is a galvanically isolated sensor interface for all Shelly Plus relays. Use it to measure temperature and humidity using its 1-Wire terminals, or connect various analog and digital sensors for complex automation and higher efficiency.

Shelly Plus Add-on is compatible with most Arduino sensors. Use its digital or analog inputs to measure your desired parameters and create complex automation scenes based on the sensor data.

You can connect a reed-switch sensor to Shelly Plus Addon's digital sensor and follow the state of your garage door. This way, you will always know whether it is open or closed when you're away and take appropriate action.

Main features:

• Can be used with up to five DS18B20 sensors or one DHT22 sensor
• Has an analog and a digital input
• DS18B20 - Temperature sensor (up to 5); please choose the product variant with or without (default variant ships without it)
• DHT22 sensor - if you want to monitor temperature and humidity

Specification:

• Size: 37 x 42 x 15 ±0.5 mm
• Weight: 105 g
• Shell material: Plastic
• Color: Black
• Ambient temperature: -20 °C to 40 °C
• Humidity: 30% to 70% RH
• Max. altitude: 2000 m
• Power supply voltage AC: N/A
• Power supply voltage DC: 3.3 V (from Shelly plus device)
• Power consumption: < 0.5 W (without sensors)
• VCC max. current: 10 mA
• VREF OUT max. current: 1 mA
• Shelly Plus Addon supporting devices: Shelly Plus 1/1PM, Shelly Plus 2PM, Shelly Plus i4/i4DC
• Temperature reading: Depends on the DS18B20 or DHT22 sensors
• Humidity reading: Depends on the DHT22 sensor
• Digital input: -15 V to 0.5 V (True) / 2.5 V to 15 V (False)
• Analog input range: 0 to 100%
• Analog input report threshold: 1%
• Voltmeter range: 0 to 10 V
• Voltmeter report threshold: 0.1 V
