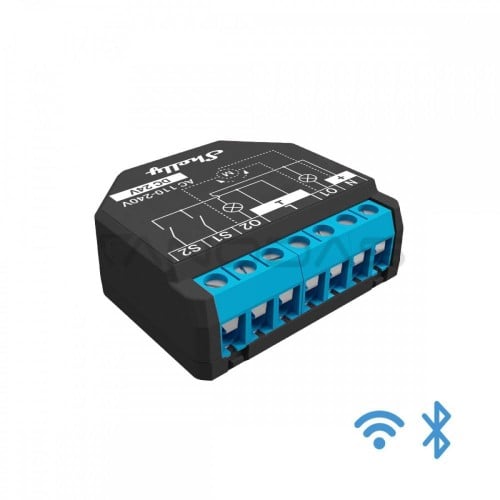

Shelly Plus 2PM Wi-Fi-operated smart switch, 2 channels 16A total current - 18A peak

Brand: Shelly
Product Code: Shelly PLUS 2PM
Availability: Vilnius Store In Stock
Kaunas Store Out of Stock
Central Warehouse In Stock
34.50€
Ex Tax: 28.51€

Qty

Automate lights and monitor their real-time power consumption. Automate and control the current position of roller shutters, curtains, garage doors, awnings, gates, electric sliding doors, pool covers, bi-directional AC motors.
Shelly Plus 2PM allows you to control two different circuits and monitor their consumption separately. This way, you can control two different lights on the same phase with only one device, saving additional energy and reducing your wiring footprint. Use the manual switch, app, preferred home automation system, or your voice.
Shelly Plus 2PM supports cover control, which makes it perfect for automating curtains, roller shutters, garage doors, awnings, gates, and any other two-directional motor in your home. Use the Schedules function to create the perfect morning/evening routines by setting Shelly Plus 2PM to open/close the curtains in your home at pre-set hours every day. Additionally, precise position control allows you to set the desired intermediate position of your curtains in percent.

Main features:

  • 2 channels in the same phase
  • Power metering on each channel
  • Cover (roller) control - automate and adjust the position of roller shutters, blinds, gates, curtains, awnings, sliding doors, and other bi-directional motors
  • Scripting, schedules, and webhooks

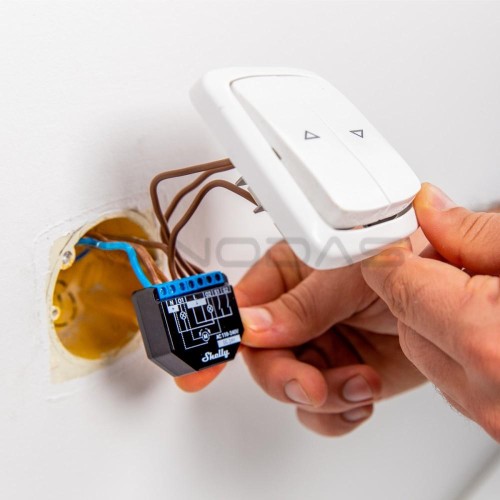

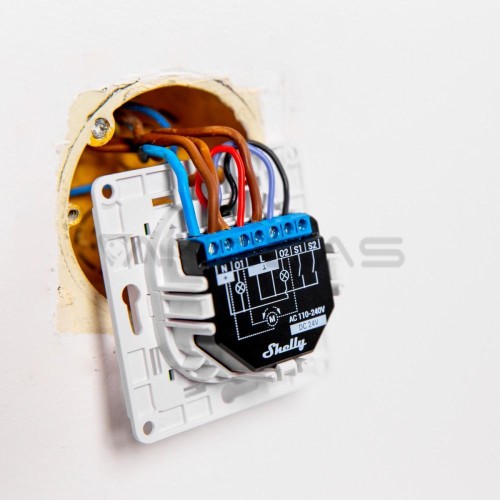

  • Designed to fit in most standard electrical boxes and switches
  • Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants

Specification:

  • Size: 37 x 42 x 16 ± 0.5 mm
  • Mounting: Wall Console
  • Screw terminals max. torque: 0.4 Nm
  • Conductor cross-section: 0.5 to 1.5 mm²
  • Conductor stripped length: 5 to 6 mm
  • Shell material: Plastic
  • Color: Black
  • Ambient temperature: -20 °C to 40 °C
  • Humidity: 30% to 70% RH
  • Max. altitude: 2000 m
  • Power supply: 110 - 240 V AC / 24 V DC ±10%
  • Power consumption: < 1.4 W
  • Max. switching voltage AC: 240 V
  • Max. switching voltage DC: 30 V
  • Max. switching current AC: 10 A (per channel), 16 A (total), 18 A (total peak)
  • Max. switching current DC: 10 A
  • Temperature sensor: Yes
  • Voltmeter (AC): Yes
  • Ammeter (AC): Yes
  • RF band: 2400 - 2495 MHz
  • Max. RF power: < 20 dBm
  • Wi-Fi protocol: 802.11 b/g/n
  • Wi-Fi Range: Up to 30 m indoors and 50 m outdoors (Depending on local conditions)
  • Bluetooth Protocol: 4.2
  • Bluetooth Range: Up to 10 m indoors and 30 m outdoors (Depending on local conditions)
