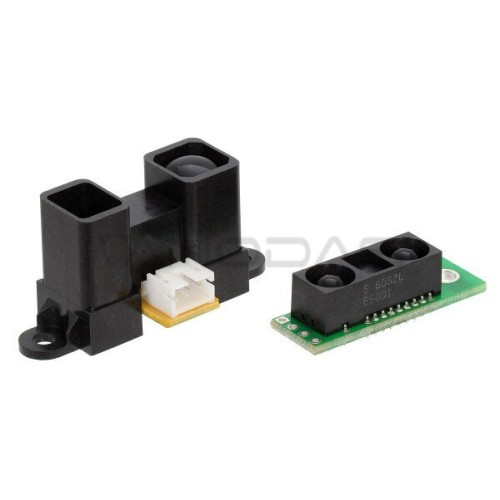

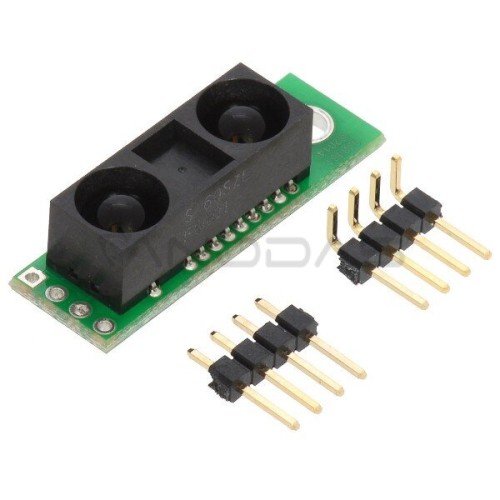

Sharp GP2Y0A60SZLF, the analog distance sensor 10-150cm 5V, Pololu 2474

Brand: Pololu
Product Code: AN-02707
Availability: Temporarily Out Of Stock
48.10€
Ex Tax: 39.75€

The sensor can detect objects at a distance from 10 to 150 cm. The output is an analog signal whose value depends on the distance between the detected object and the sensor. The closer the object is, the voltage at the output will be higher. The data refresh rate is 60 Hz.

Specification:

  • Measuring range: from 10 cm to 150 cm
  • Operating voltage: 2.7 V to 5.5 V
  • The average current consumption: 33 mA
  • Output: voltage - analog signal
  • The difference of the output voltage from 0.6 V to 3.6 V:
    • 0,6 V for 150 cm
    • 3.6 V for 10 cm
  • Refresh rate: 60 Hz
  • Case: 33,0 x 10.5 x 10.2 mm
  • Weight: 3.5 g
