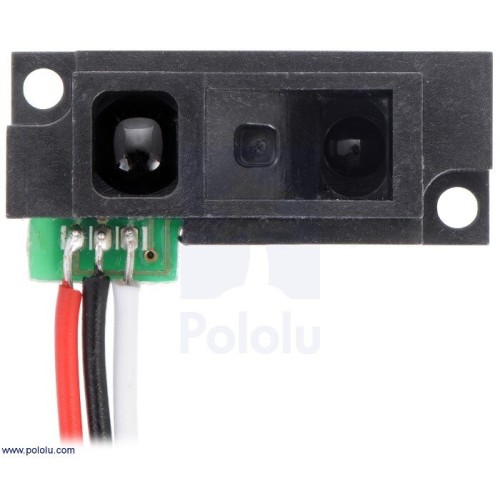

Sharp GP2Y0A51SK0F, analog distance sensor 2-15cm, Pololu 2450

Brand: Pololu
Product Code: AN-03064
Availability: 4-6 business days
Planned delivery date after ordering: 2025-04-04
22.10€
Ex Tax: 18.26€

Qty

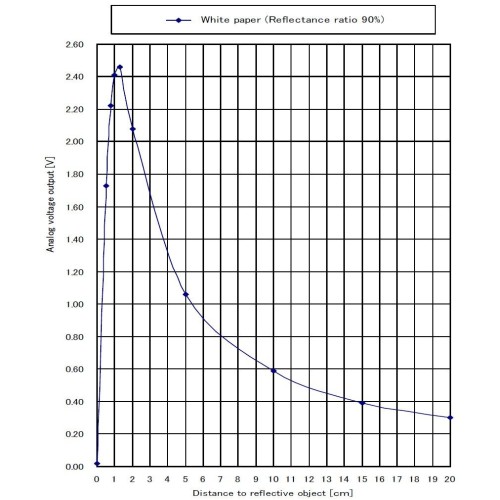

The sensor can detect objects at a distance from 2 to 15 cm. The output is an analog signal whose value depends on the distance between the detected object and the sensor. The closer the object is, the voltage at the output will be higher.

Specification:

  • Measurement range: from 2 to 15 cm
  • Supply voltage: 4,5 V to 5,5 V
  • Average current consumption: 12 mA
  • Refresh frequency: 60 Hz
  • Output: voltage - analog signal
  • Dimensions: 27 x 13,2 x 14,2 mm
  • Weight: 2,7 g
