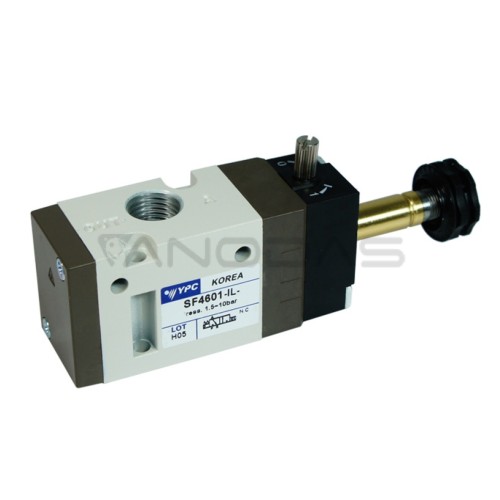

SF4601-IL Solenoid Valve

Brand: YPC
Product Code: MX-P-ZS-SF4601-IL
Availability: Temporarily Out Of Stock
80.00€
Ex Tax: 66.12€
Technical data:
  • Function: 3/2 normally closed
  • Connection: 1/4″
  • Return way: air + spring
  • Width: 26 mm
  • Flow: 1000 l/min (5 bar)
  • Medium: compressed air and inert gases
  • Pressure: 1.5 ~ 10 bar
  • Temperature range: 5 ~ 60°C
  • Response time: 25 ms (5 bar)
  • Operating frequency: 5 c/sec
  • Lubrication: use ISO VG32#
  • Manual override: switch
Construction:
  • Valve housing: aluminum
  • Coil body: aluminum
  • Seals: NBR rubber
  • Spring: stainless steel
  • Cover: die-cast zinc
  • Remote control parts: glass fiber reinforced nylon
  • Armature: stainless steel
  • Armature seal: elastomer

Width [mm]: 26 mm
Flow: 1000 l/min (5 bar)
Connection: 1/4"
Function: 3/2 normally closed
Return way: air + spring
Pressure: 2 ~ 10 bar
Freq. work: 5 c/sec
Response time: 25 ms (5 bar)
Manual override: switch
