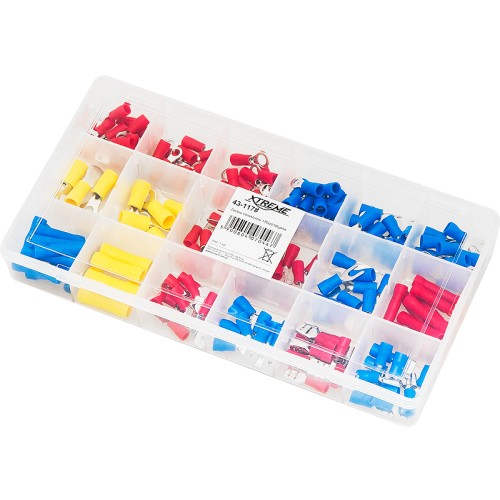

Set of insulated terminals 175 pcs.

Product Code: 43-117
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2025-05-08
9.40€
Ex Tax: 7.77€

Qty

Set of insulated terminals, 175 pcs. 18 species

Box dimensions:

  • Width: 280 mm
  • Depth: 185 mm
  • Height: 42 mm

The set includes:

15 pcs. Insulated Ring Connector Core [mm2]: 0.5-1.5 For Screw: M3

             Screw 3.2 The color is red

             Cable 4.3 I max [A]: 19

10 pcs. Insulated Ring Connector Core [mm2]: 0.5-1.5 For Screw: M4

             Screw 4.3 The color is red

             Cable 4.3 I max [A]: 19


10 pcs. Insulated Ring Connector Core [mm2]: 0.5-1.5 For Screw: M5

             Screw 5.3 The color is red

             Cable 4.3 I max [A]: 19


15 pcs. Insulated Ring Connector Core [mm2]: 1.5-2.5 For Screw: M3

             Screw 3.2 Color blue

             Cable 4.9 I max [A]: 27


10 pcs. Insulated Ring Connector Core [mm2]: 1.5-2.5 For Screw: M4

             Screw 4.3 Color blue

             Cable 4.9 I max [A]: 27


10 pcs. Insulated Ring Connector Core [mm2]: 1.5-2.5 For Screw: M5

             Screw 5.3 Color blue

             Cable 4.9 I max [A]: 27


5 pcs. Insulated ring connection Core [mm2]: 4-6 For screw: M5

             Screw 5.3 The color is yellow

             Cable 6.7 I max [A]: 48


5 pcs. Insulated ring connection Core [mm2]: 4-6 For screw: M6

             Screw 6.5 Color yellow

             Cable 6.7 I max [A]: 48


10 pcs. Fork-shaped Insulated connector Core [mm2]: 0.5-1.5 For screw: M3

             Screw 3.2 The color is red

             Cable 4.3 I max [A]: 19


10 pcs. Fork-shaped Insulated connector Core [mm2]: 0.5-1.5 For screw: M4

             Screw 4.3 The color is red

             Cable 4.3 I max [A]: 19


10 pcs. Fork-shaped Insulated connector Core [mm2]: 1.5-2.5 For screw: M4

             Screw 4.3 Color blue

             Cable 4.9 I max [A]: 27


10 pcs. Insulated connector connector Core [mm2]: 0.5-1.5

             Cable 1.7 Color red

             Length 26 I max [A]: 19


10 pcs. Insulated connector connector Core [mm2]: 1.5-2.5

             Cable 2.3 Color blue

             Length 26 I max [A]: 27


5 pcs. Insulated connection connection Core [mm2]: 4-6

             Wire 3.4 Color yellow

             Length 26 I max [A]: 48


10 pcs. Flat connector with insulation (plug) Core [mm2]: 0.5-1.5 Tip dimensions 0.8 / 6.35

             Wire 4.3 The color is red

             Length 20 I max [A]: 10


10 pcs. Flat connector with insulation (plug) Core [mm2]: 1.5-2.5 Tip dimensions 0.8 / 6.35

             Cable 4.3 Color blue

             Length 21 I max [A]: 15


10 pcs. Flat connector with insulation (socket) Core [mm2]: 0.5-1.5 Tip dimensions 0.8 / 6.35

             Cable 3.8 Color red

             Length 20 I max [A]: 10


10 pcs. Flat connector with insulation (socket) Core [mm2]: 1.5-2.5 Tip dimensions 0.8 / 6.35

             Cable 4.3 Color
