Set of 5mm LEDs justPi 16pcs

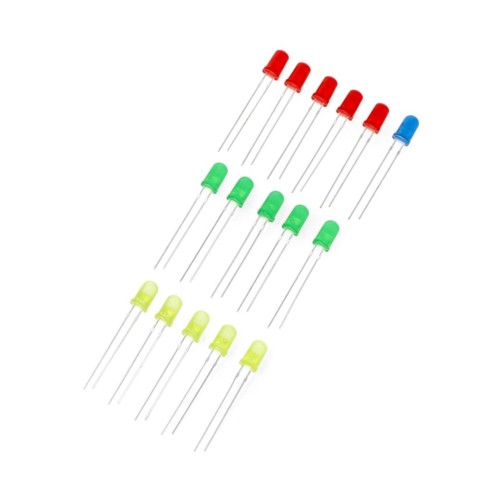

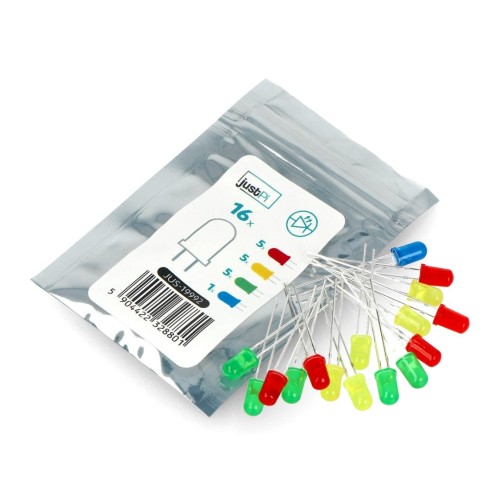

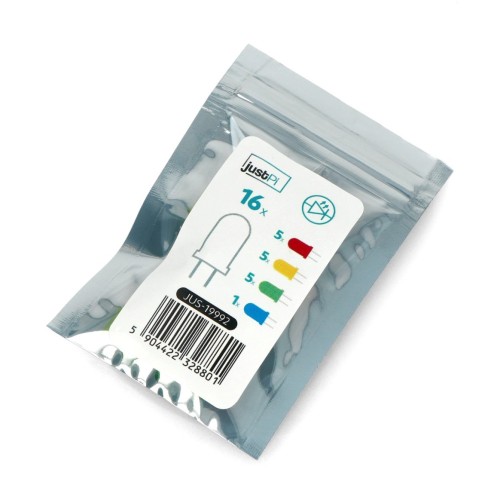

LED set in a 5 mm DIP housing. It contains as many as 16 LEDs in 4 colors - 5 red, 5 green, 5 yellow and 1 blue. The elements were manufactured by the justPi company.

Specifications:

Technical specifications of the yellow LED

• Lens colour: yellow
• Housing: 5mm DIP socket
• Mounting: THT
• Emitted wavelength: 589 nm
• Brightness: 40 mcd
• Angle of illumination: 60°
• Working temperature: from -40°C to 80°C
• Operating parameters:
• Current If: 25 mA
• voltage Vf: 2,0 V

• Lens colour: green
• Housing: 5 mm DIP
• Mounting: THT
• Emitted wavelength: 571 nm
• Brightness: from 100 mcd to 150 mcd
• Angle of illumination: 50°
• Working temperature: from -40°C to 80°C
• Operating parameters:
• Current If: 20 mA
• voltage Vf: 2,3 - 2,5 V

• Lens colour: red
• Housing: 5 mm DIP
• Mounting: THT
• Emitted wavelength: from 625 nm to 645 nm
• Brightness: from 450 mcd to 800 mcd
• Illumination angle: 70°
• Operation temperature: from -40°C to 80°C
• Operating parameters:
• Current If: 20mA
• voltage Vf: 2,0 - 2,3 V'

• Lens colour: blue
• Housing: 5mm DIP
• Mounting: THT
• Emitted wavelength: 470 nm
• Brightness: 1000 mcd
• Angle of illumination: 30°
• Working temperature: from -40°C to 80°C
• Operating parameters:
• Current If: 25 mA
• voltage Vf: 3,2 V
