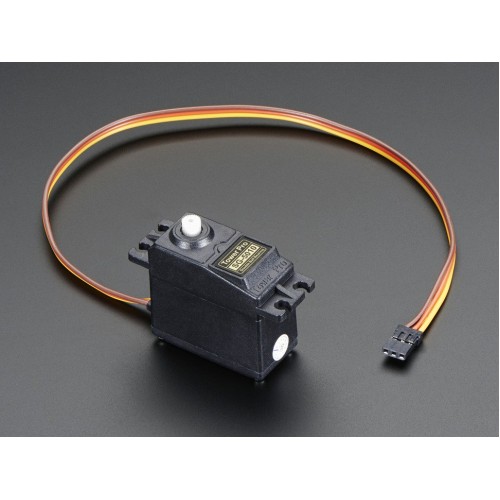

Servo TowerPro SG-5010 - standard

Product Code: AN-00485
Availability: 4-6 business days
Planned delivery date after ordering: 2025-04-15
21.50€
Ex Tax: 17.77€

Qty

Servo motors are a type of motors that move, when given new position data. An integrated chip determines it's current position and moves the motor to the new position.

Specification

  • Voltage: from 4,8 V to 6,0 V
  • Movement range: from 0 ° to 180 °
  • Dimensions: 40 x 20 x 41 mm
  • Weight: 48 g



  • 4,8 V parameters:
    • Torque: 5,2 kg*cm (0,51 Nm)
    • Speed: 0,20 s/60°

  • 6,0 V parameters:
    • Torque: 6,5 kg*cm (0,637 Nm)
    • Speed: 0,16 s/60°

  • The kit includes servo horn set, spacers and screws.
