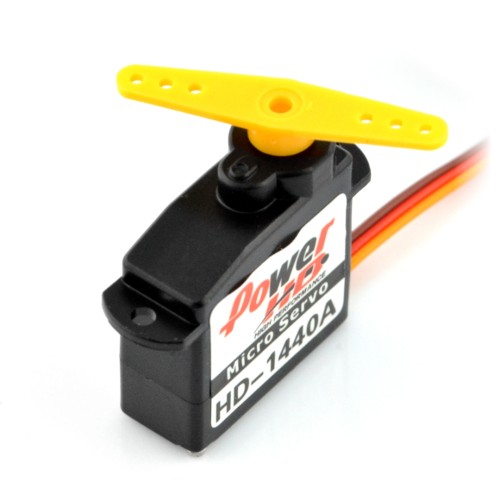

Servo PowerHD HD-1440A - micro

Product Code: AN-02849
Availability: Vilnius Store Out of Stock
Kaunas Store Out of Stock
Central Warehouse In Stock
8.60€
Ex Tax: 7.11€

Qty

Servo motors are a type of motors that move, when given new position data. An integrated chip determines it's current position and moves the motor to the new position.

Specification

  • Voltage: from 4,8 V to 6,0 V
  • Working temperature: from -20 ° C to 60 ° C
  • Type: analog
  • JR connector
  • Cable length: ~100 mm
  • Dimensions: 40,7 x 20,5 x 39,5 mm
  • Weight: 60 g



  • 4,8 V parameters:
    • Torque: 0,6 kg*cm (0,059 Nm)
    • Speed: 0,12 s/60°
    • Power consumption in standby mode: 4 mA
    • Power Consumption Unloaded: 100 mA
    • Maximum current consumption: 270 mA

  • 6,0 V parameters:
    • Torque: 0,8 kg*cm (0,079 Nm)
    • Speed: 0,10 s/60°
    • Power consumption in standby mode: 5 mA
    • Power Consumption Unloaded: 110 mA
    • Maximum current consumption: 320 mA

  • The kit includes servo horn set, spacers and screws.
