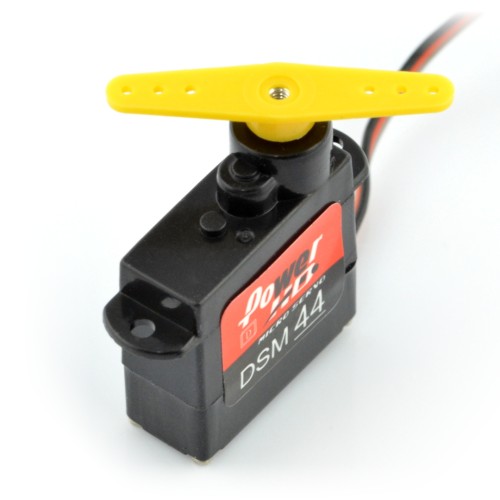

Servo PowerHD DSM44 - micro

Product Code: AN-02853
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-09
14.80€
Ex Tax: 12.23€

Qty

Servo motors are a type of motors that move, when given new position data. An integrated chip determines it's current position and moves the motor to the new position.

Specification

  • Voltage: from 4,8 V to 6,0 V
  • Movement range: from 0 ° to 140 °
  • Type: analog
  • Working temperature: from - 20 ° C to 50 ° C
  • Control signal: 1520 μs / 50 Hz
  • JR connector
  • Cable length: ~160 mm
  • Dimensions: 20,2 x 8,7 x 27 mm
  • Weight: 6 g



  • 4,8 V parameters:
    • Torque: 1,2 kg*cm (0,11 Nm)
    • Speed: 0,09 s/60°

  • 6,0 V parameters:
    • Torque: 1,6 kg*cm (0,15 Nm)
    • Speed: 0,07 s/60°

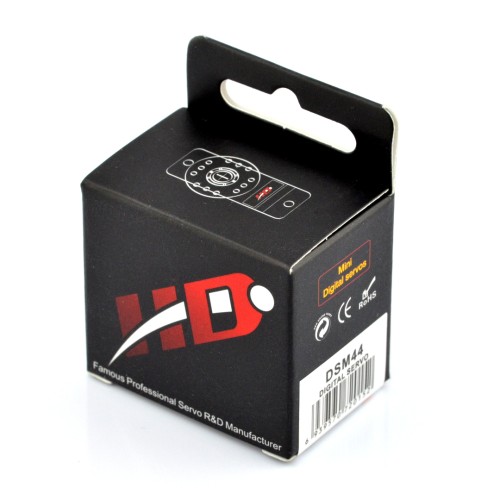

  • The kit includes servo horn set, spacers and screws.
