Servo MG-90S - micro - 180 degrees - plastic gear

Product Code: AN-20436
Availability: 4-6 business days
Planned delivery date after ordering: 2025-03-07
5.60€
Ex Tax: 4.63€

Qty

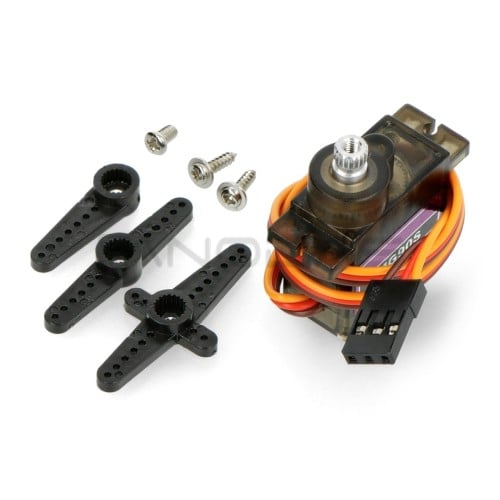

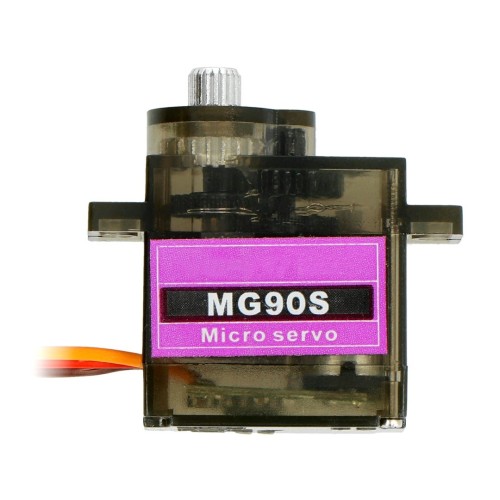

Micro type servo with MG-90S designation. It has a gear made of plastic elements. The product is characterized by high stability and precision of operation. The supply voltage is from 4.8 V to 6 V. With a power supply of 6 V the torque is 2.2 kg/cm. Dimensions of MG-90S are 22,8 x 12,2 x 28,5 mm. The cable ends with a plug and is about 25 cm long. The weight of the servo is approx. 10 g.

Specification:

  • Model: MG-90S
  • Housing material: plastic
  • Gear material: plastic
  • Servo type: micro
  • Supply voltage: from 4.8 V to 6.0 V
  • Parameters for 4.8 V:
    • Torque: 1.8 kg/cm (0.2 Nm)
    • Speed: 0.1s/60°
  • Parameters for 6.0 V:
    • Torque: 2.2 kg/cm (0.23 Nm)
    • Speed: 0.08s/60°
  • Range of motion: 0° to 180°
  • Cable length: approx. 25 cm
  • Dimensions: 22.8 x 12.2 x 28.5 mm
  • Weight: approx. 10 g
