Servo Feetech FT6325M - standard

Brand: Feetech
Product Code: AN-17693
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-09
33.00€
Ex Tax: 27.27€

Qty

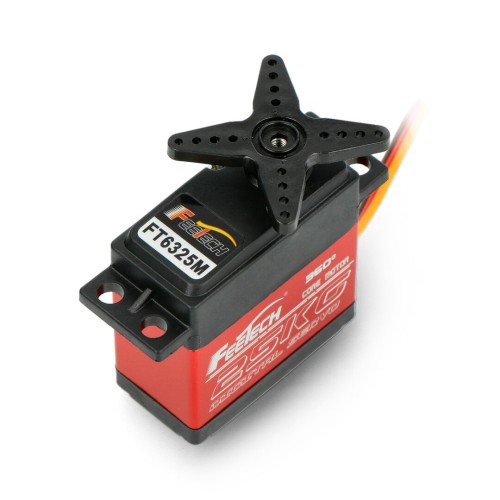

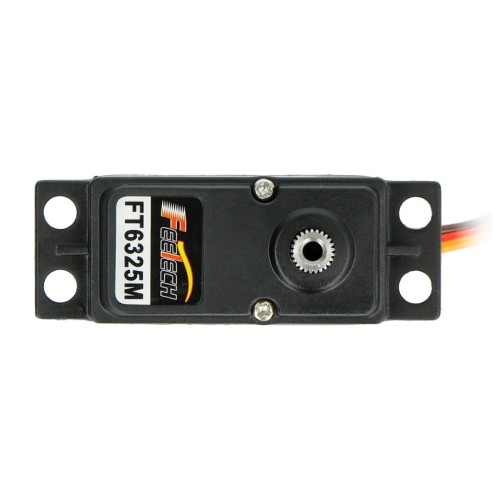

Standard type servo by Feetech. It is powered with a voltage from 6 V to 8.4 V. Current consumption without load is 1200 mA. The range of motion of the servo is from 0° to 360°. It has a 300 mm long cable that is terminated with a JR connector. The kit includes several additional servo orbs and the parts needed to mount them.

Specification:
  • Manufacturer: Feetech
  • Model: FT6325M
  • Supply voltage: from 6 V to 8.4 V
  • Servo type: digital
  • Servo range: 360°
  • It has a movement limiter
  • Storage temperature: from -30 °C to 80 °C
  • Operating temperature: from -20 °C to 60 °C
  • Cable length: 30 cm
  • Orbit type: 25T / 9.5 mm
  • Controls:
    • Stop position: 1500µs
    • Counterclockwise rotation: 1500 - > 2000µs
    • Maximum pulse range: 500 to 2500µs
  • Bearing: Ball bearing
  • Degree of protection: IP54
  • Connector: standard JR connector
  • No-load speed: 0.151 s/60°
  • Servo dimensions: 55 x 20 x 43 mm
  • Weight: 67 g
  • Specifications for 6 V:
    • Torque: 20.5 kg/cm
    • Speed: 0.185 s/60°
    • Current consumption when the shaft is stopped: 3 A
    • No-load current consumption: 1000 mA
  • Parameters for 7.4 V:
    • Torque: 25 kg/cm
    • Speed: 0.151 s/60°
    • Current consumption when the shaft is stopped: 3,5 A
    • No-load current consumption: 1200 mA

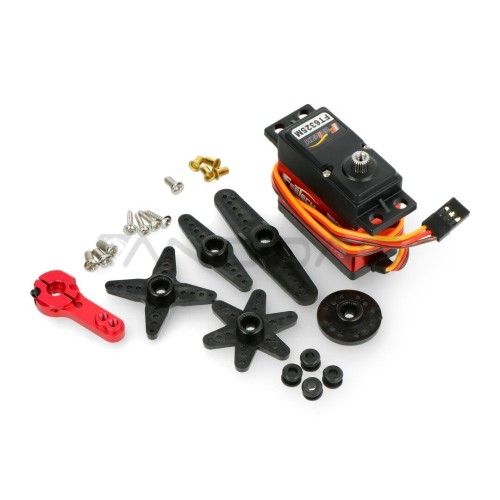

Set includes:
  • Feetech servo FT6325M

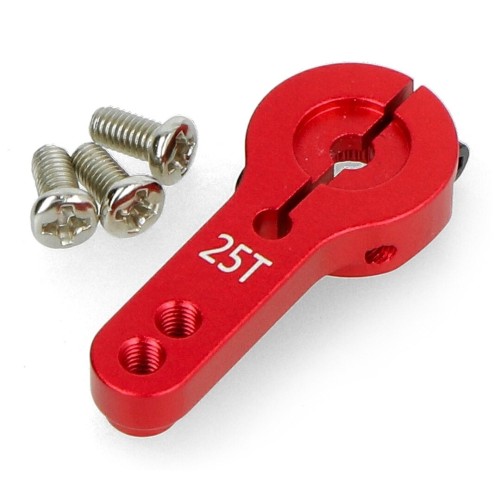

  • Set of pendulums
  • Mounting elements
