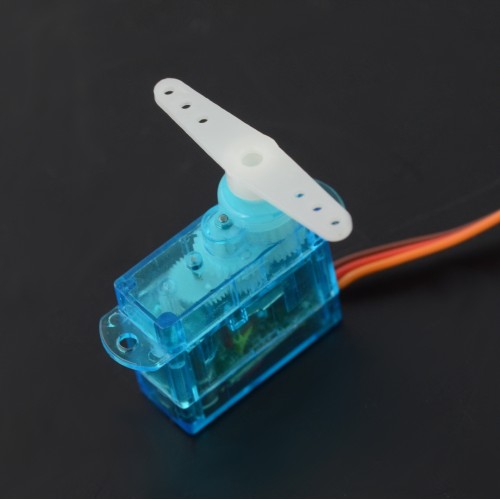

Servo Feetech FS0307 - micro

Product Code: AN-09156
Availability: 4-6 business days
Planned delivery date after ordering: 2025-03-04
7.50€
Ex Tax: 6.20€

Qty

Servo motors are a type of motors that move, when given new position data. An integrated chip determines it's current position and moves the motor to the new position.

Specification

  • Voltage: from 4,8 V to 6,0 V
  • Movement range: from 0 ° to 120 °
  • Type: analog
  • Control signal: 900 - 2100 µs
  • Cable length: ~150 mm
  • Dimensions: 20,0 x 8,3 x 17,3 mm
  • Weight: 3,7 g



  • 4,8 V parameters:
    • Torque: 0,5 kg*cm (0,049 Nm)
    • Speed: 0,10 s/60°

  • 6,0 V parameters:
    • Torque: 0,6 kg*cm (0,59 Nm)
    • Speed: 0,09 s/60°

  • The kit includes servo horn set, spacers and screws.
