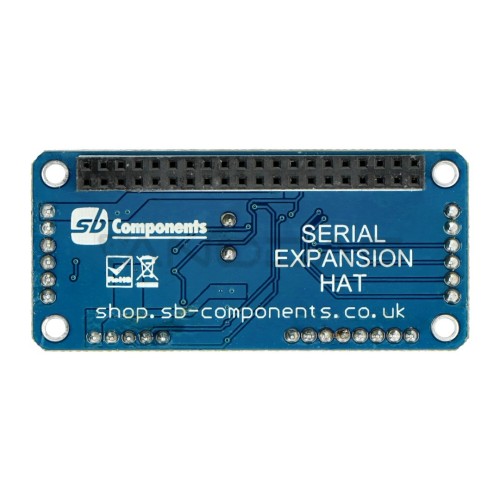

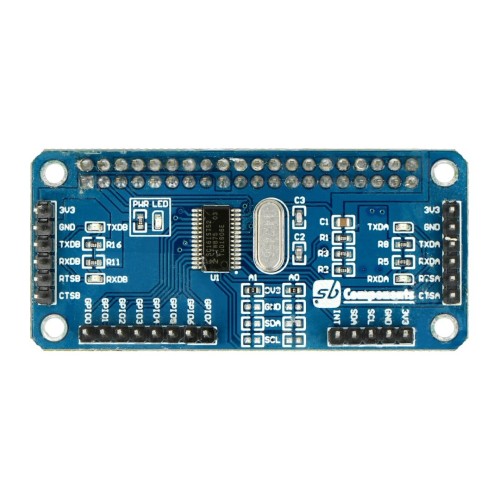

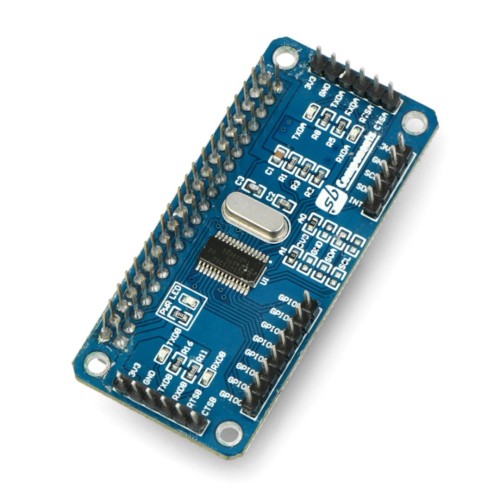

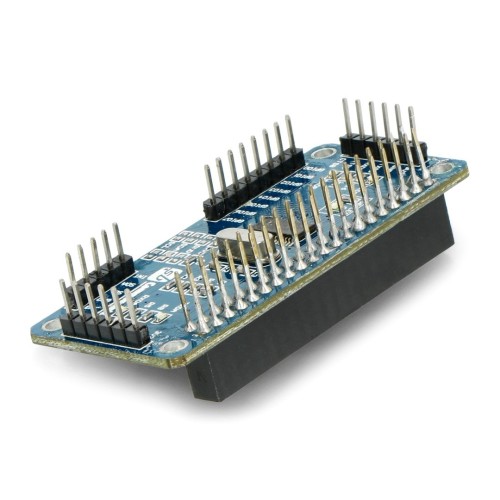

Serial Expansion HAT UART, GPIO SC16IS752 for Raspberry Pi - SB Components SKU14873
Brand: SB components
Product Code: AN-20406
Availability: 4-6 business days
Planned delivery date after ordering: 2025-08-01
Product Code: AN-20406
Availability: 4-6 business days
Planned delivery date after ordering: 2025-08-01
Ex Tax: 20.91€

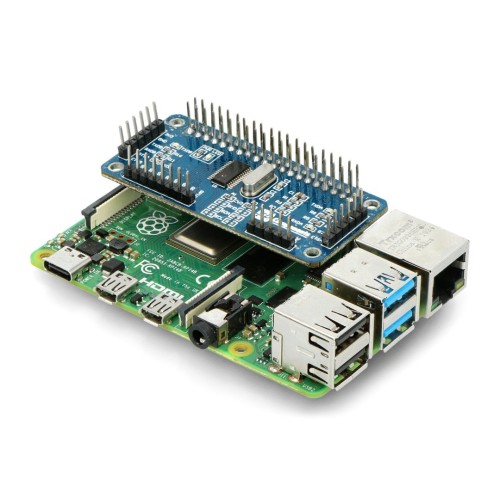

Serial expander in form of HAT overlay for Raspberry Pi minicomputers equipped with 40-pin GPIO connector. The overlay is based on the SC16IS752 chip which extends Raspberry Pi with two additional UART serial interfaces and 8 programmable GPIOs over I2C. There is also a 40-pin male goldpin connector on the module, which allows up to 16 overlays to be connected, equipping the minicomputer with up to 32 additional UART channels.
Main features:
Main features:
- Standard Raspberry Pi 40-pin GPIO connector
- Based on the SC16IS752 chip, 2 UART channels and 8 programmable GPIOs via I2C
- Up to 16 overlays can be connected simultaneously by changing the I2C address, expanding the UART count to 32 channels
- Built-in LEDs indicating UART operation status
- Reserved I2C pins, to connect the board with another module than Raspberry Pi
- Operating voltage: 3,3 V
- Circuit: SC16IS752
- Communication interface: I2C
- UART: 2x
- GPIO: 8x
- Dimensions: 65 x 30 mm
