SenseCAP S2106 - pH sensor - LoRaWAN - Seeedstudio 101070001
Brand: Seeedstudio
Product Code: AN-22928
Availability: 4-6 business days
Planned delivery date after ordering: 2025-02-28
Product Code: AN-22928
Availability: 4-6 business days
Planned delivery date after ordering: 2025-02-28
Ex Tax: 200.25€

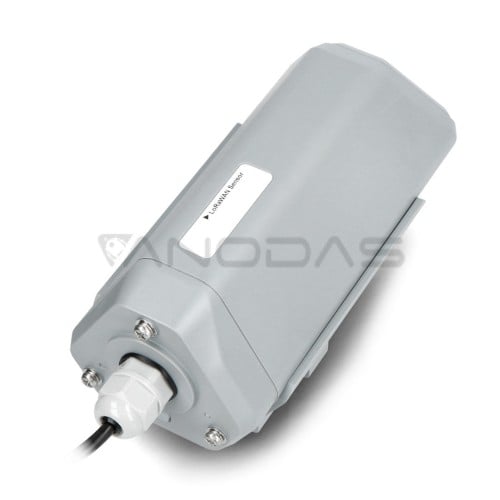

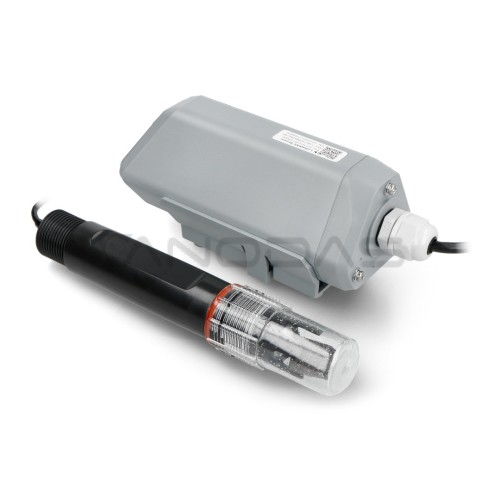

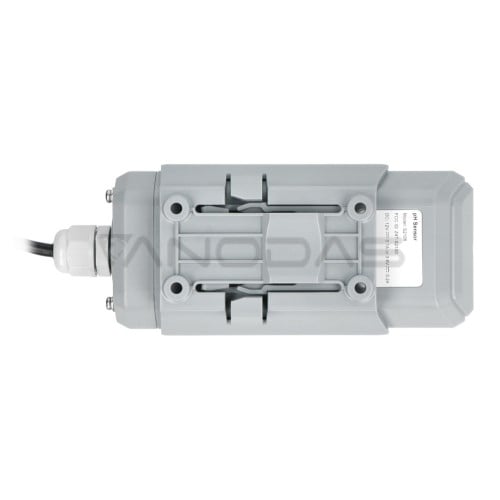

SenseCAP S2106 is a wireless water pH sensor. For communication, it uses the LoRaWAN and Bluetooth long-range protocols. The pH sensor measures the activity of hydrogen ions in aqueous solutions, indicating their acidity or alkalinity expressed as pH. The industrial class module has been enclosed in an IP66 housing, it allows you to measure acidity/alkalinity in the range from 0 pH to 14 pH with an accuracy of 0.1 pH. Durability and long battery life ensure low maintenance costs for the module. The built-in Bluetooth chip allows OTA configuration and remote device management.
Main features:
- SenseCAP provides no-code support that allows the user to complete setup and calibration using the SenseCAP Mate app
- Works with various types of LoRaWAN gateways to enable high-speed connection to local LoRaWAN networks (863 MHz to 928 Mhz universal frequency plan support)
- Operating temperature from -40 °C to 85 °C and IP66 sealed housing, suitable for outdoor use, high exposure to UV radiation, heavy rain, dusty conditions, etc
- The transmission range in urban areas is 2 km and 10 km in line of sight. Powered by an easily replaceable Li-SoCl2 battery (type: ER34615) with a service life of up to 10 years
Specification:
- pH
- measuring range: from 0 pH to 14 pH
- accuracy: ± 0.1 pH
- resolution: 0.1 pH
- Temperature (built-in in junction box - sensor cannot measure water or soil temperature):
- measuring range: -40 °C to 85 °C
- accuracy: ± 0.5 °C
- resolution: 0.1 °C
- Model: S2106
- Microcontroller: Wi-E5
- Protocol Supported: LoRaWAN v1.0.3 Class A
- Built-in Bluetooth: parameter change via app
- LoRaWAN Channel Plan: IN865 / EU868 / US915 / AU915 / AS923 / KR920 / RU864 (supports 7 plans)
- transmission power: 19 dBm
- Sensitivity: -136 dBm for SF12 BW = 125 kHz
- Communication range: from 2 km to 10 km (depending on the terrain)
- Sealing class: IP66
- Operating temperature: -40 °C to 85 °C
- Operating humidity: 0% to 100% RH
- Battery life: 10 years
- Battery capacity: 19 Ah
- Battery Type: Standard Size D SoCl2
- Probe length:
- 2 m (DTU to junction box)
- 5 m (probe junction box)
- Maintenance and calibration: the probe must be cleaned every 3 to 6 months and calibrated every 6 to 12 months
- Weight: 600 g
Set includes:
- SenseCAP S2106
- Handle
- Self-drilling screws KA 4 x 20 mm
- Quick User Guide
