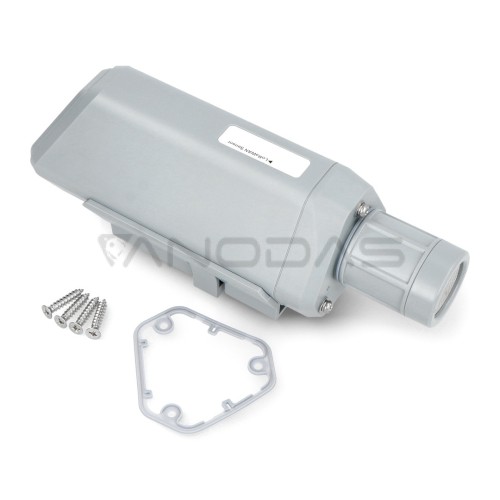

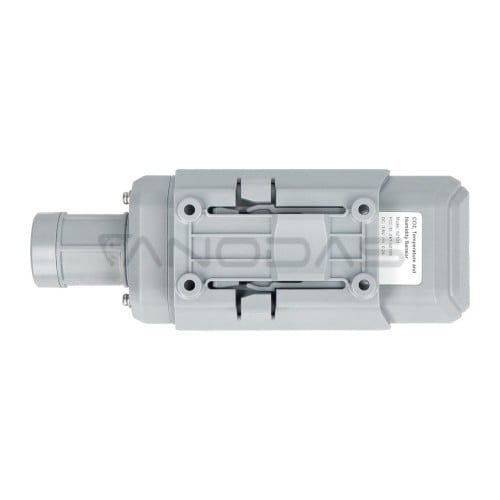

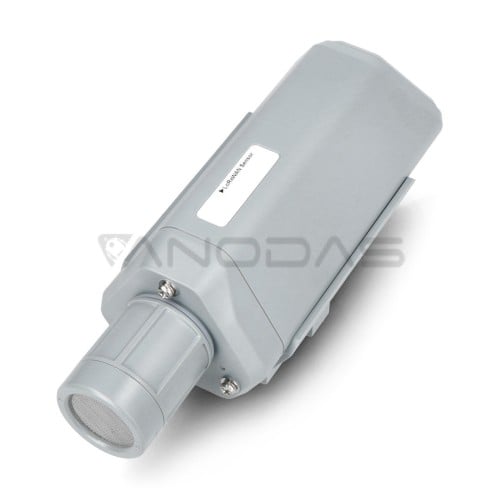

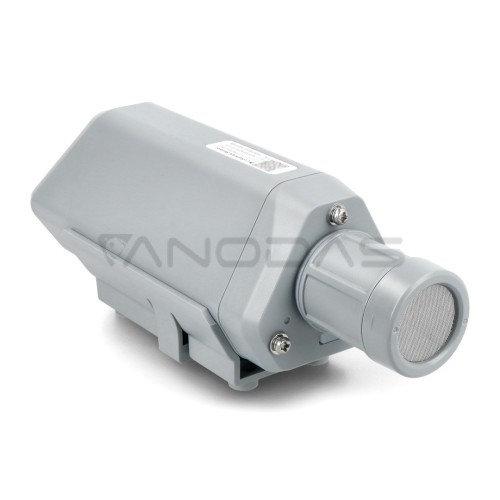

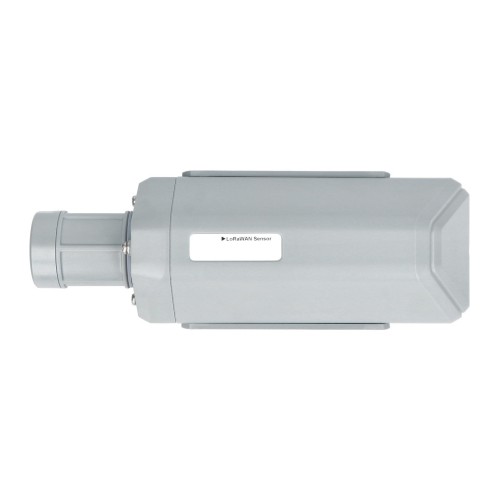

SenseCAP S2103 - CO2, temperature and humidity sensor - LoRaWAN - Seeedstudio 114992869
Brand: Seeedstudio
Product Code: AN-21857
Availability: 4-6 business days
Planned delivery date after ordering: 2025-02-04
Product Code: AN-21857
Availability: 4-6 business days
Planned delivery date after ordering: 2025-02-04
Ex Tax: 129.34€
SenseCAP S2103 is equipped with a CO2, temperature and humidity sensor. It communicates via the long-range wireless protocol LoRaWAN and Bluetooth. The industrial class module has been enclosed in an IP66 housing, it allows you to measure CO2 gas concentration in the range from 400 ppm to 10000 ppm, temperature from -40 °C to 85 °C and humidity in the range from 0% to 100% RH. Durability and long battery life ensure low maintenance costs for the module. The built-in Bluetooth chip allows OTA configuration and remote device management.
Main features:
Main features:
- Simple setup: The user-friendly environment allows you to complete setup in four steps, with no programming required
- SenseCAP mobile application: the manufacturer has prepared the SenseCAP Mate application for mobile devices
- Minimal maintenance cost: the sensor is enclosed in a sealed IP66 housing, configurable via Bluetooth and equipped with a 19 Ah battery
- Compatible with worldwide LoRaWAN networks: Works with various types of LoRaWAN gateways and multiple LoRaWAN network servers (Helium, TTN, etc.) to enable fast connection to local LoRaWAN networks
- High-Performance Guarantee: Passed rigorous reliability testing to ensure high performance and long life
- Carbon Dioxide CO2:
- measuring range: from 400 ppm to 10000 ppm
- accuracy: 400 ppm to 5000 ppm: ± (30 + 3% MV)
- resolution: 1 ppm
- Temperature:
- measuring range: -40 °C to 85 °C
- accuracy: ± 0.2°
- resolution: 0.01 °C
- long-term drift: < 0.03 °C/year
- Humidity:
- measuring range: from 0% to 100%
- accuracy: ±1.8% RH
- resolution: 0.01% RH
- long-term drift: < 0.25% RH
- Model: S2103
- Microcontroller: Wi-E5
- Protocol Supported: LoRaWAN v1.0.3 Class A
- Built-in Bluetooth: parameter change via app
- LoRaWAN Channel Plan: IN865 / EU868 / US915 / AU915 / AS923 / KR920 / RU864 (supports 7 plans)
- transmission power: 19 dBm
- Sensitivity: -136 dBm for SF12 BW = 125 kHz
- Communication range: from 2 km to 10 km (depending on the terrain)
- Sealing class: IP66
- Operating temperature: -40 °C to 85 °C
- Operating humidity: 0% to 100% RH
- Battery life: 10 years
- Battery capacity: 19 Ah
- Battery type: standard size D SOCI2
- Probe length: 5 m
- Weight: 285 g
- SenseCAP S2103
- Handle
- Self-drilling screws KA 4 x 20 mm
- Quick User Guide
