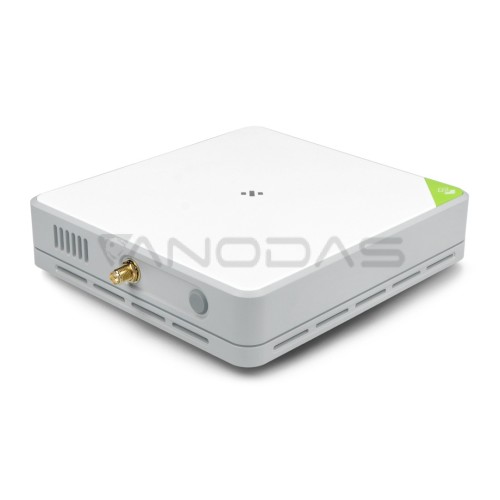

SenseCAP M2 Light Hotspot EU868 - Helium LoRaWAN gateway - unlimited license - Seeedstudio B23010314
Ex Tax: 177.02€
The SenseCAP M2 Light Hotspot is a high-performance Helium LoRaWAN gateway that allows users to join the Helium network at a low cost. The kit includes an unlimited license to take full advantage of the PoC and data transfer benefits with minimal investment and greater flexibility. The device works in the EU868 network and provides a very large range of the LoRa wireless network, reaching several kilometers.
A valid SeseCAP software license is required for the SenseCAP M2 Light Hotspot. The license activates the software package for remote management and effective Beacon function as well as correct data transmission. The set includes an activation card with no expiry date, which means that you don't have to worry about extending it. The license is for SenseCAP M2 Light Hotspot only and cannot be used with other SenseCAP devices. The SeseCAP license is different from the Helium Onboarding fee.
The advanced MediaTek MT7628 and Semtech SX1302/SX1303 LoRa chips used in the SenseCAP M2 Light Hotspot ensure excellent and stable performance. The device is additionally equipped with BLE and WiFi wireless communication systems, as well as an Ethernet port. The device also supports power supply directly via the Ethernet - PoE port, so there is no need to use additional PoE splitters.
Main features:
- The device has a LoRaWAN network range of up to 10 km and a strong 3 dBi signal thanks to the high-performance antenna
- Mature Hardware Solution with MediaTek MT7628 and Semtech SX1302/SX1303 and PoE support
- No additional PoE splitters required
- SeneCAP Device PaaS, Dashboard and Local Console help you manage devices effectively
- SenseCAP M2 features a built-in ECC608 encryption chip, high-security authentication and reliable connectivity
- Together with the SenseCAP Hotspot App, the device is ready to go in a few simple steps
- Huge SenseCAP community on Discord plus online tech support when needed
Specification:
- Processor: MT7628 (MIPS24KEC 580MHz)
- RAM memory: DDR2 128 MB
- Flash memory: 32 MB
- LoRa Gateway chip: SX1302 / SX1303
- LoRa Sensitivity:
- -125 dBm / 125 kHz / SF7
- -139 dBm / 125 kHz / SF12
- LoRa TX power: up to 26 dBm
- Antenna:
- LoRa: External 3 dBi
- WiFi: built-in
- BLE: ceramic
- Antenna Impedance: 50 Ohms
- WiFi: 2.4 GHz 802.11 b/g/n
- Bluetooth: Dual-Module, Bluetooth v2.1 + EDR and V5.2
- Ethernet: RJ45 (10/100Mbps)
- LoRaWAN: Class A, C
- Input voltage: 12 V / 2 A
- PoE: IEEE 802.3af, from 40 V to 57 V DC

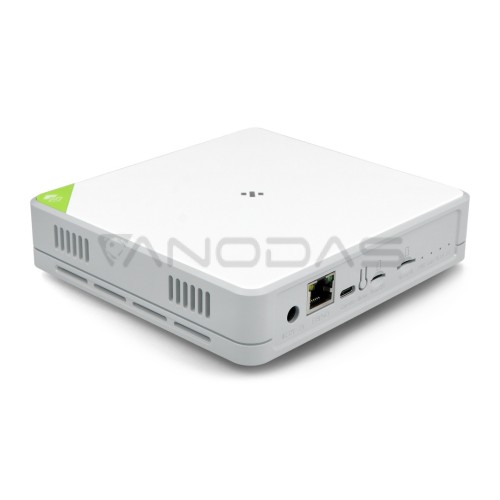

- Interfaces:
- Ethernet RJ45
- RP-SMA connector
- microSD card slot
- USB Type-C (Console)
- Operating temperature: -20 °C to 55 °C
- Operating humidity: 0% to 85% (non-condensing)
- Dimensions:
- 143.6 x 135 x 34 mm (without connector)
- 150.6 x 135 x 34 mm (with connector)
- 340 x 230 x 65 mm (packaged)

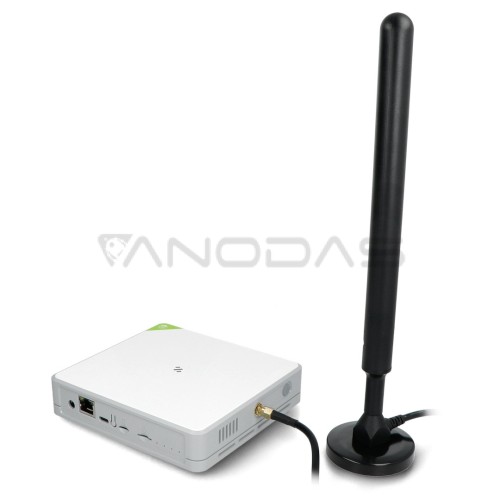

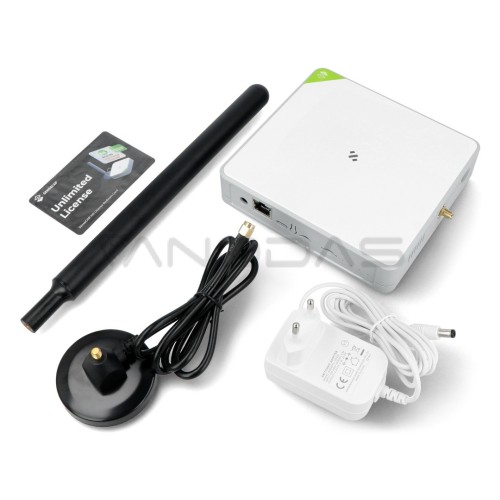

Set includes:
- SenseCAP M2 Light Hotspot
- 3 dBi antenna with base
- Adapter
- User manual
- Unlimited license
