Self soldering sleeve wire splices insulated 0.25-0.34mm²

Product Code: ABC-11819
Availability: Vilnius Store In Stock
Kaunas Store In Stock
Central Warehouse In Stock
0.80€
Ex Tax: 0.66€

Qty

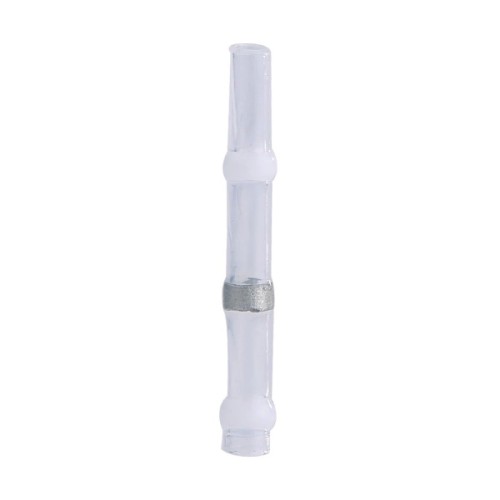

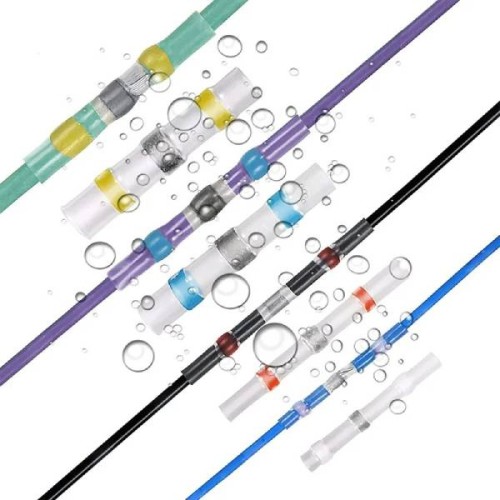

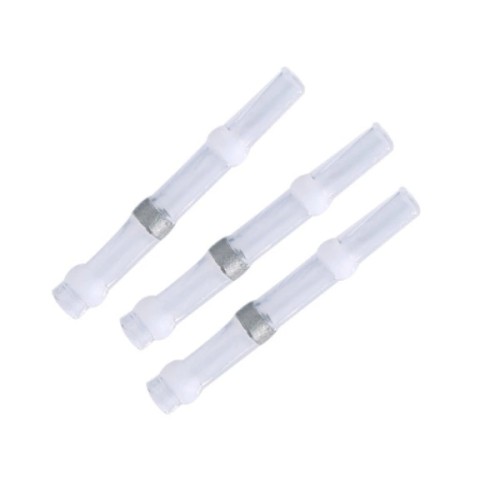

A soldered thermal tube is a quick irreplaceable connection when we need to connect wires safely and permanently. In the center of the heat tube tube is a ring with a solder that dissolves when heated to about 150 degrees, thus connecting the wires. Inside the joint there are 2 layers of glue that reinforce and protect the joint from moisture.
Specifications:
  • wire diameter: 0.25 ~ 0.34 mm2
  • Connection length: about 41mm
  • Inner diameter: about 6mm
  • Operating temperature: -55 ° C ~ 125 ° C
  • Solder shrinkage and melting point: above 150 ° C
  • Shrinkage ratio: 3: 1
  • Insulation material: polyolefin
