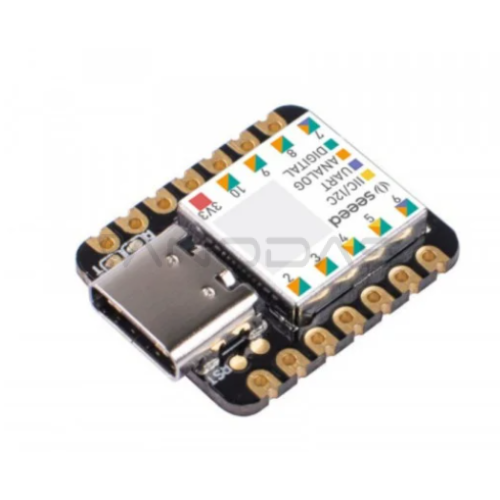

Seeeduino Xiao - SAMD21 ARM Cortex M0+

Brand: Seeedstudio
Product Code: AN-16023
Availability: Vilnius Store In Stock
Kaunas Store Out of Stock
Central Warehouse In Stock
11.90€
Ex Tax: 9.83€

Qty

Description:

Small module equipped with SAM2D1G18ARM Cortex M0+ microcontrollerwith 256 kB flash and 32 kB SRAM compatible with Arduino. The board features 14GPIO connectors, including 11 digital / analog, 10 PWM, DAC, I2C, UART, SPI, SWD. The module has described outputs for easy connection. The module's outputs work with a voltage of 3.3 V. The module is powered with 5 V through a USB type C connector.

Main features of Seeeduino Xiao:

  • Efficient microcontroller: SAMD21 ARM Cortex M0+ 32-bit 48 MHz with 256 kB flash and 32 kB SRAM.
  • Wide compatibility: programmable in Arduino IDE.
  • Ease of design.
  • Small dimensions: 23,5 x 17,5 mm.
  • Many interfaces: 11 digital / analog I/O, 10 PWM, 1 DAC, 1 SWD, 1 I2C, 1 UART, 1 SPI.
Seeeduino Xiao module outputs:

The module is equipped with 14 GPIOs, including popular communication interfaces such as: digital and analog I/O, PWM, I2C, UART, SPI. All outputs aredescribed on the board.

Seeeduino Xiao specifications:

  • The deal: SAMD21 ARM Cortex M0+ 48 MHz
  • Flash memory: 256 kB
  • SRAM: 32 kB
  • GPIO: 14
  • digital / analog I/O: 11
  • I2C: 1
  • SPI: 1
  • UART: 1
  • PWM: 10
  • Power supply: 5 V - USB C
  • Operating voltage: 3,3 V
  • Communication: USB C
  • LED: 1x user LED, 1x power LED, 2x serial communication LED
  • Reset button

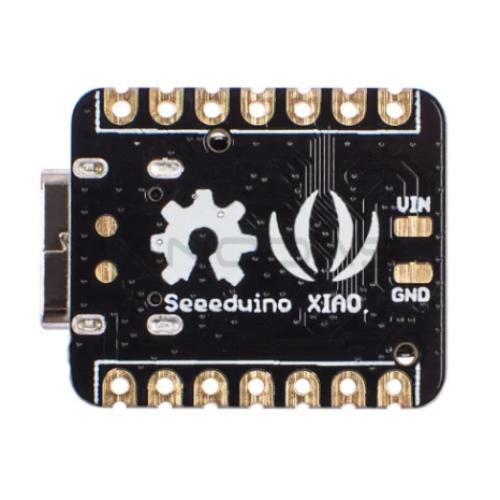

  • Power pads: to connect batteries
  • Compatible with Arduino IDE
  • Dimensions: 23.5 x 17.5 x 3.5 mm

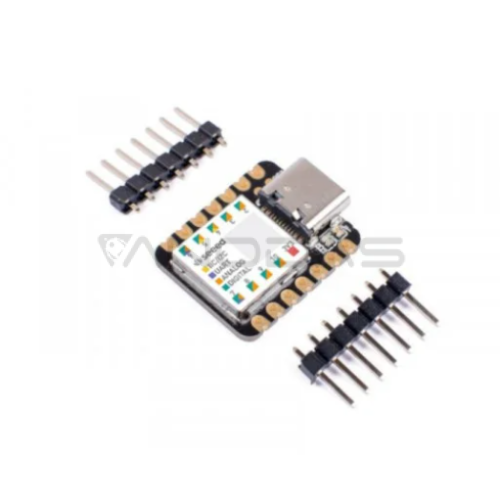

The set includes:

  • Seeeduino Xiao module
  • 2x 7-pin connector
  • 4x sticker
