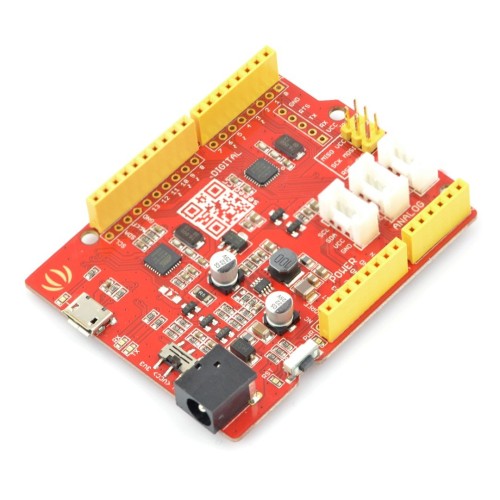

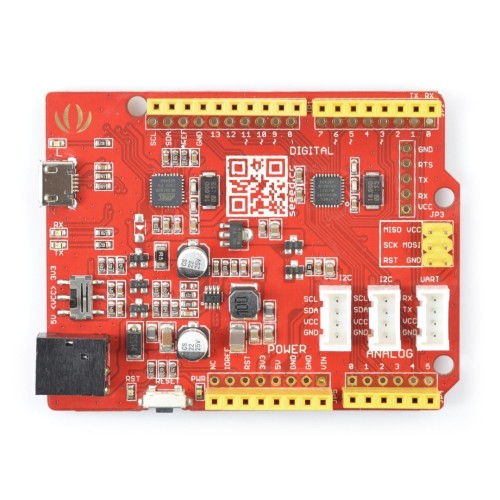

Seeeduino v4.2 3.3V/5V, compatible with Arduino

A module made by Seeedstudio is equipped with the ATmega328 microcontroller. The distribution of pins is compatible with the Arduino Uno. It has 14 digital input/outputs, 6 PWM channels, 6 analog inputs, as well as popular communication interfaces. The board contains an FTDI chip and microUSB connector. The module allows you to work with voltages of 3.3 V or 5 V selected with a switch. In addition, the board has three connectors for the connection of sensors from the Grove series.

Main features:

• The ATMega328 microcontroller with Arduino Uno bootloader at 16 MHz frequency
• 3 connectors for connection of sensors from Grove series
• The possibility to work with a voltage of 3.3 V or 5 V (selected by switch)
• The distribution of pins is compatible with the Arduino so the shields will work correctly


Specification:

• The module is compatible with Arduino Uno
• Embedded microcontroller: ATmega328P 16 MHz
• It works with a voltage of 3.3 V or 5 V
• 3 connectors for 4-pin Grove
• MicroUSB connector for programming of the board
• DC power supply: 7 to 12 V
• 14 I/O connectors
• 6 PWM outputs
• 6 analog inputs
• ISP connector
• Flash memory: 32 KB
• RAM: 2 KB
• EEPROM: 1 KB
• Dimensions: 69 x 53 mm


Useful links:
Manual
