Seeed Xiao BLE nRF52840 Sense - TinyML/TensorFlow Lite - IMU/Microphone - Bluetooth 5 - Seeedstudio 102010469
Product Code: AN-21260
Availability: 4-6 business days
Planned delivery date after ordering: 2025-01-10
Ex Tax: 21.16€
Main features:
- Powerful CPU: Nordic nRF52840, ARM Cortex M4 32-bit with 64MHz FPU
- Wireless connectivity: Bluetooth 5.0, NFC and ZigBee with a built-in Bluetooth antenna
- Ultra-small dimensions: 21 x 17.5 mm
- Ultra-low power consumption: 5 μA, deep sleep mode
- Battery charging system: BQ25101 chip that supports lithium batteries
- Rich in interfaces: 1x reset button, 1x UART, 1x I2C, 1x SPI, 1x NFC, 1x SWD, 11x GPIO, 6x ADC, 1x 3-in-1 LED, 1x user LED
- Built-in 2 MB Flash memory
- Built-in microphone, real-time acquisition suitable for sound recognition projects
- Built-in 6-axis IMU sensor, which in combination with TinyML allows recognizing gestures
- Components are placed on one side of the board by the surface method
- Perfect for IoT / smart clothing projects
- Suitable for TinyML artificial intelligence projects: detection, processing, 3-in-1 communication
- Processor: Nordic nRF52840, ARM Cortex-M4 64 MHz
- Wireless Connectivity: Bluetooth 5.0, NFC, ZigBee
- Chip memory: 1 MB Flash memory and 256 KB RAM memory
- Board memory: 2 MB of QSPI Flash memory
- Interfaces:
- 1x UART
- 1x I2C
- 1x SPI
- 1x NFC
- 1x SWD
- 11x GPIO (PWM)
- 6x ADC
- Sensors: PDM digital microphone, 6-axis IMU
- Working voltage: 3.3 V / 200 mA
- Charging current: 50 mA / 100 mA
- Input voltage: 5 V
- Standby current consumption: less than 5 μA
- Dimensions: 21 x 17.5 mm
- Seeed Xiao BLE nRF52840 Sense - TinyML/TensorFlow Lite - IMU/microphone - Bluetooth 5 - Seeedstudio 102010469

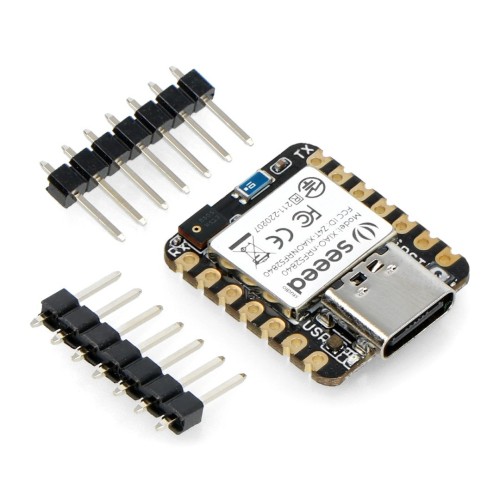

- 2x male goldpin strip 1x 7-pin
