Screen Kit, display in housing, for Creality Ender-3 3D printer, Creality

Brand: Creality
Product Code: AN-19689
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-06
32.40€
Ex Tax: 26.78€

Qty

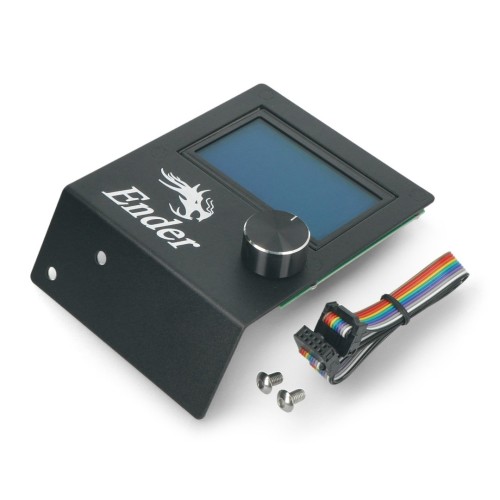

Screen Kit is a kit prepared by one of the most popular manufacturers of 3D printers - Creality. It contains a display with a resolution of 128x64px and solid housing. Display colors are white and blue. The sturdy case made of metal provides adequate protection and increases the life of the display. In the lower-left corner, the manufacturer has placed the white inscription Ender and the original logo. On the right side, there is a potentiometer, which is used to control the printer. Mounting holes are located on the bottom of the component. The kit also includes mounting hardware - two hex head screws and a convenient 485mm long connecting cable.

Specification:
  • Original component for 3D printers manufactured by Creality
  • Type: display in the housing
  • Compatible with the 3D printer: Creality Ender-3
  • Display Designation: ENH12864Z-1
  • Resolution: 128x64px
  • Display colors: white and blue
  • Control: via potentiometer
  • Display connectors: EXP1, EXP2, EXP3
  • Housing color: black with a white mark
  • Housing material: metal
  • Dimensions:
    • display dimensions: 93 x 89 x 19 mm
    • display dimensions with housing and potentiometer knob: 102 x 135 x 55 mm
    • potentiometer knob dimensions: 25 x 12 mm (diameter x height)
    • cable length with connectors: 485 mm
Set includes:
  • Display in housing for Creality Ender-3
  • Potentiometer knob
  • Connection cable 48.5 cm long
  • Mounting elements: hex head screws - 2x
