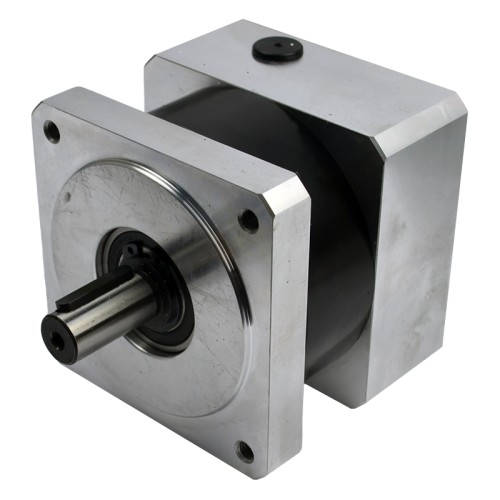

SC86STH stepper motor planetary gearbox 1:40 motor shaft 14mm

Brand: Wagney
Product Code: MX-IW-SC86STH-1-40
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-20
207.90€
Ex Tax: 171.82€

Qty

Gear Ratio: 1:40
Weight: 4 kg
Size: Nema34
Noise Level: ≤45 dB
Capacity Gear Ratios Reduction: Not Applicable
Double Gear Ratios Reduction: 40
Rated Load Capacity Reduction: Not Applicable
Rated Load Double Reduction: 80 Nm
Max. Load Capacity Reduction: Not Applicable
Max. Load Double Reduction: 160 Nm
Efficiency % Capacity Reduction: Not Applicable
Efficiency % Double Reduction: 94
Arcmin Standard Clearance Capacity Reduction: Not Applicable
Standard Clearance Arcmin Double Reduction: ≤25
IP Protection Level: 65
K (L-mm): 97
Rated Input Speed: 3000 rpm
Maximum Input Speed: 5000 rpm
Lubrication: Grease (Lubricated for Life)
Lifespan: ~2000 hours
