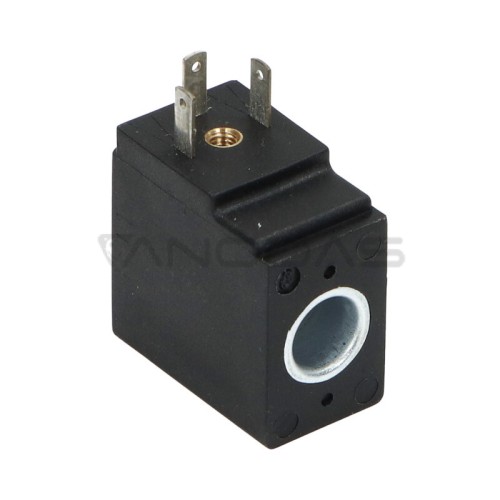

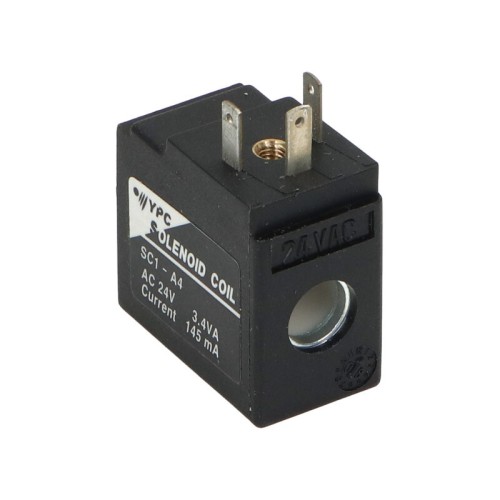

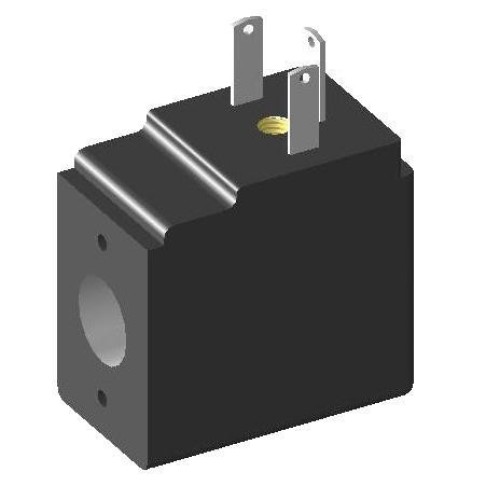

SC1-A4 solenoid valve coil 15 mm 24V AC

Brand: QC - Quality Control
Product Code: MX-P-ZS-SC1-A4
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-19
16.20€
Ex Tax: 13.39€

Qty

Technical data:
  • Width: 15 mm
  • Type: 3-pin
  • Voltage tolerance: +/- 10%
  • Coil insulation class: F or equivalent
  • Temperature range: 5 ~ 60°C
  • Tightness class: IP65
Construction:
  • Form: nylon glass
  • Cable: AWG-no. 22. No. 24
  • Cable insulation: elastomer
  • Yoke: cast iron
  • Indicator cap: polycarbonate

Type: 3-pin
Width [mm]: 15mm
Voltage: 24VAC
Tolerance. voltage: +/- 10%
Coil insulation class: F or equivalent
Cable: AWG-no. 22. No. 24
Indicator cap: polycarbonate
