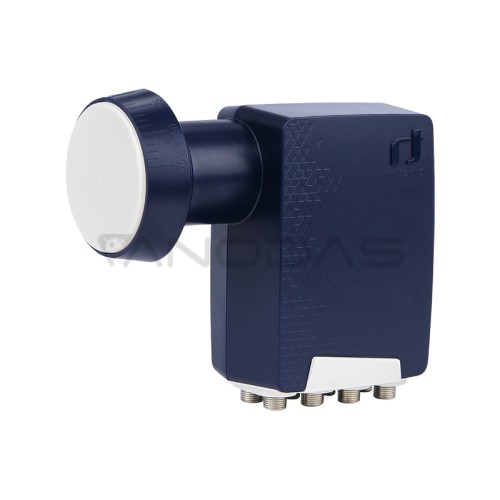

SAT INVERTO OCTO PREMIUM

A specially designed converter responds to the global demand of the DTH market related to 4G and LTE. Octo Home Pro enables reception using the latest technology - supports HD and UHD transmissions. It provides excellent performance with very low power consumption. It enables the reception of satellite TV from one satellite and its distribution to 8 set-top boxes (or four PVRs with two tuners).

Characteristics:
- Low phase noise, compatible with DVB-S2 (HD and UHD)
- Low noise figure
- Low power consumption
- High cross polarity
- High frequency stabilization

Specification:

- Input frequency range: 10.7GHz ~ 12.75GHz

- Output frequency range: 950MHz ~ 1950MHz

- Low LO frequency band: 9.75GHz

- LO high frequency band: 10.6GHz

- Noise level: 0.7dB typ. (max 1dB)

- Frequency accuracy: LO @ 25°C ± 500 kHz max.

- Temperature drift: ± 800 kHz max.

- LO phase noise at 10kHz: -90dBc/Hz. max

- Conversion gain: 55 db. min.

- Ripple gain: (bandwidth above 26 MHz) ± 0.6 dB

- Gain change (over the whole band): ± 4 dB

- Image rejection: 40 dB

- Cross polarization isolation: 22 db min.

- VSWR: 2.3:1

- Current consumption: 210 mA max @ 11V DC - 20V DC

- Operating temperature: -30°~+60°C

- Weight: 299g
