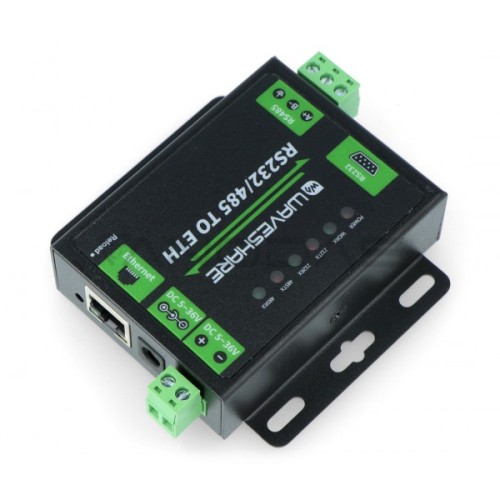

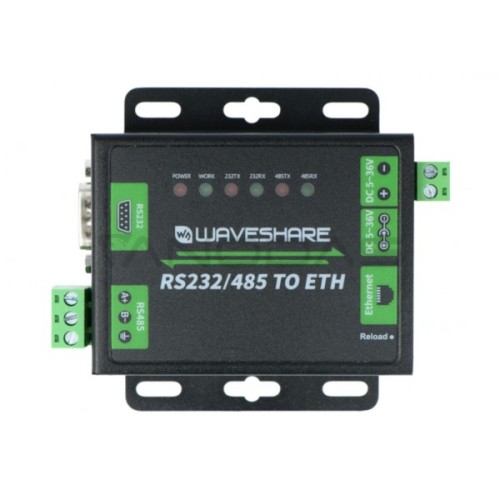

RS232/RS485 converter Ethernet - Cortex M4 Waveshare 16530

A device for exchanging data between the interface RS232 or RS485 and Ethernet RJ45. The module is configurable through a web site, the AT command serial Protocol and network Protocol. Processor-based ARM Cortex M4 32-bit. Supports the following operation modes like TCP server, TCP client, UDP server, UDP client, HTTPD client. Supports Modbus for industrial use.

Technical data:

• Ethernet:

•         connector: 4-pin RJ45

•         speed: 10 / 100 Mb/s

•         protection interface: electromagnetic isolation 1.5 KV

•         protocols: IP, TCP, UDP, ARP, ICMP, DHCP, DNS, HTTPD client

•         TX cache: 6 KB

•         RX cache: 4 KB

• RS485 / RS232:

•         connector:

•             RS485 screw: (A+, B-, GND)

•             RS232: DB9 male

•         data bits: 5 bits, 7 bits, 8 bits

•         stop bit: 1, 2

•         parity bit: None, Odd, Even, Mark, Space

•         transfer rate: 600 bit/s up to at $ 230.4 Kbps

•         TX cache: 2 KB

•         RX cache: 2 KB

•         hardware flow control: RTS / CTS

•         protection interface:

•             RS485:

•                 2KV ESD

•                 a resistor of 2.2 KΩ

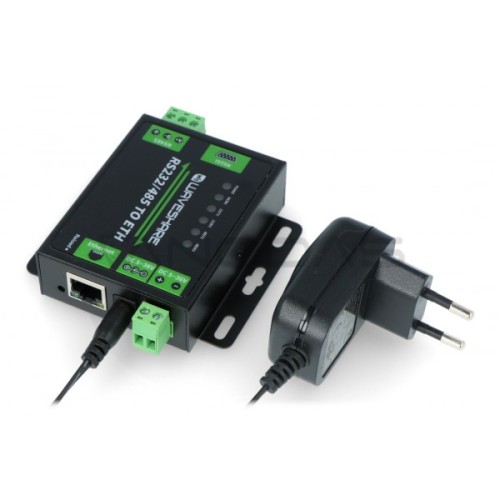

• Food:

•       supply voltage: 5 V to 36 V (recommended 5V)

•       rated current: 85,5 mA at 5 V

•       power consumption: < 1 W

•       interface protection: against surge, ESD,

• Environment:

•       operating temperature: -40°C to 85°C

•       storage temperature: -40°C to 105°C
