RP2040-LCD-0.96 - board with RP2040 microcontroller and IPS LCD display - Waveshare 20330
Brand: Waveshare
Product Code: AN-20537
Availability: 4-6 business days
Planned delivery date after ordering: 2025-02-11
Product Code: AN-20537
Availability: 4-6 business days
Planned delivery date after ordering: 2025-02-11
Ex Tax: 13.47€

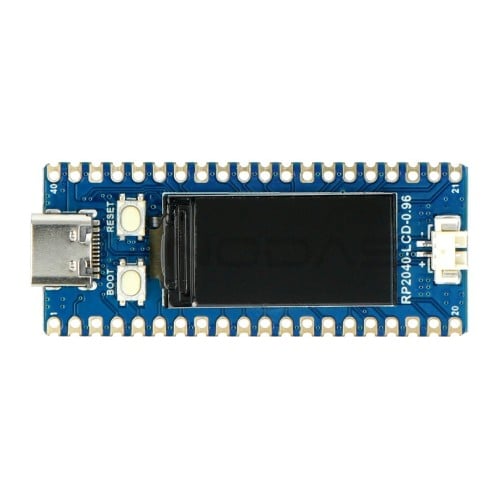

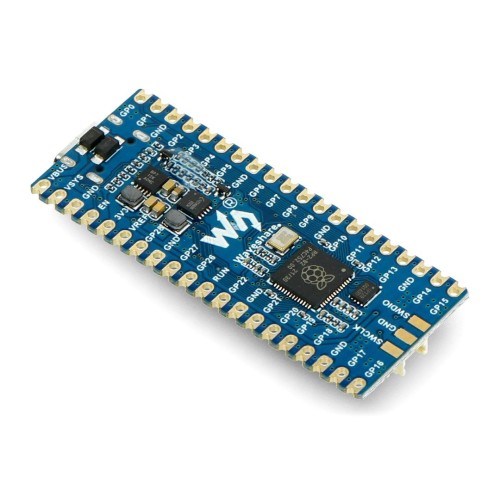

This board from Waveshare features the Raspberry RP2040 microcontroller, which is also found in the Raspberry Pi Pico. The RP2040-LCD-0.96 has two ARM Cortex-M0+ cores clocked at up to 133 MHz, 264 kB of onboard SRAM and 2 MB of Flash memory. The module also features a 0.96” color IPS LCD with a resolution of 160x80px. The platform supports popular MicroPython, CircuitPython and C/C++ programming languages. Programs can be loaded into the memory using the USB type C interface.
Main features:
Main features:
- Equipped with our own RP2040 microcontroller chip designed in the UK
- Dual-core Arm Cortex M0+ processor
- 0.96" color IPS LCD display with 160x80px and 65K display colors
- Lithium battery charge/discharge port - suitable for mobile devices
- Built-in TPS63000 DC-DC chip, high-efficiency DC-DC buck-boost circuit, 1.8 A current switch
- USB 1.1 with device and host support
- Drag-and-drop programming using USB mass storage
- 26 multi-functional GPIO pins compatible with Raspberry Pi Pico pinouts
- 2x SPI, 2x I2C, 2x UART, 3x 12-bit ADC, 16x PWM interfaces
- Built-in temperature sensor
- 8x programmable I/O (PIO) to support custom peripherals
- Chip: Raspberry Pi RP2040
- Core: ARM Cortex-M0+ Dual-Core 133 MHz
- SRAM: 264 kB
- Embedded Flash memory: 2 MB
- Pinouts: 26 multi-function GPIO pins
- Interfaces: 2x SPI, 2x I2C, 2x UART, 3x 12-bit ADC, 16x PWM
- Display: LCD IPS
- Diagonal: 0,96''
- Resolution: 160x80px
- Display colors: 65k colors
- Development environment: Raspberry Pi C/C++ SDK or MicroPython
- Power connector: USB type C
- Board dimensions: 51 x 21 mm
- Display dimensions: 28 x 13.5 mm
