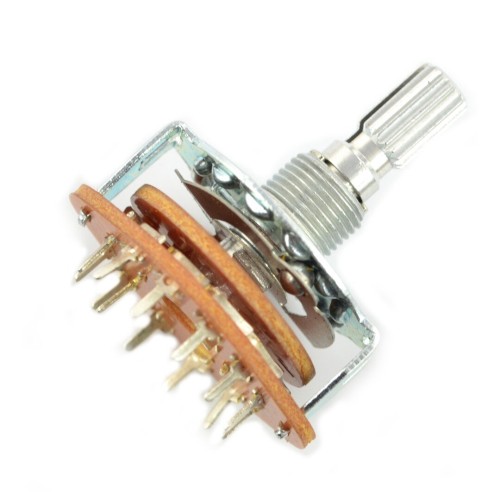

Rotary switch 12-position 1 circuit - 37mm

Product Code: AN-06148
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-06
2.40€
Ex Tax: 1.98€

Qty

Rotary switch, 12-state for the case, equipped with 13 contacts. The total height is 37 mm.

Specification:
  • Type: rotary, 12-state
  • Number of circuits: 1

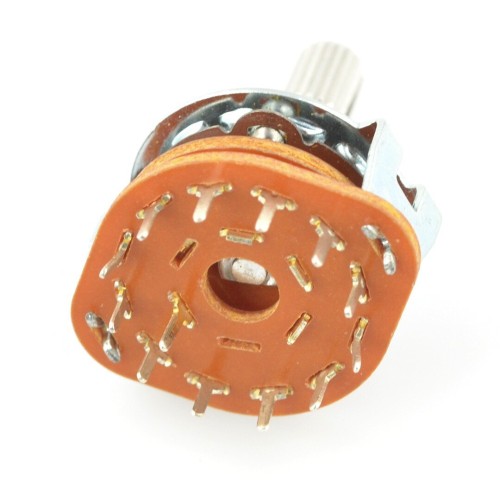

  • Number of pins: 13
  • Electrical parameters:
    • 0.3 A / 125 V AC
    • 1 A / 30 V DC
  • Contact resistance: 25 mΩ
  • Service life: 10000 switching
  • The one position rotation angle: 30°
  • The mounting thread: M10 x 0.75
  • The switch is not closed at the time of switching

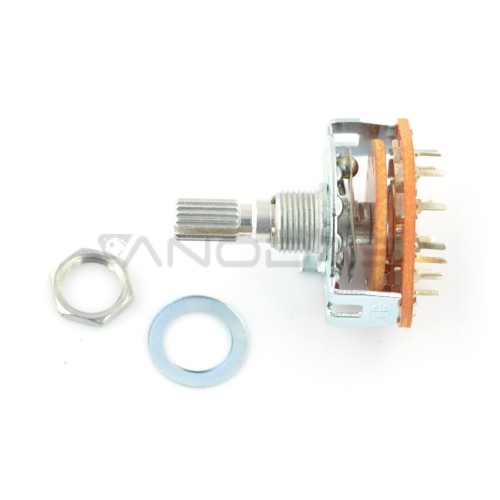

  • Included are the pad and nut
  • Thread diameter of the axis: approx. 6 mm
  • Height: 37 mm
