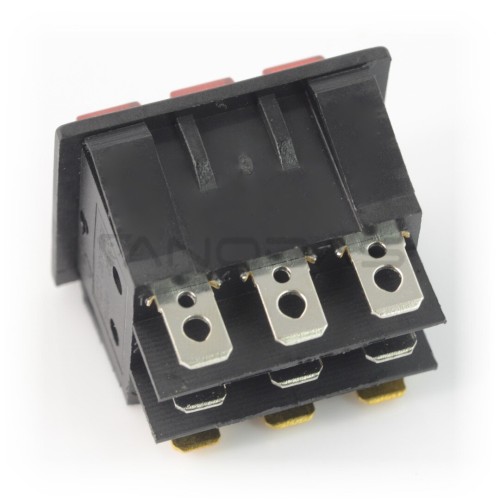

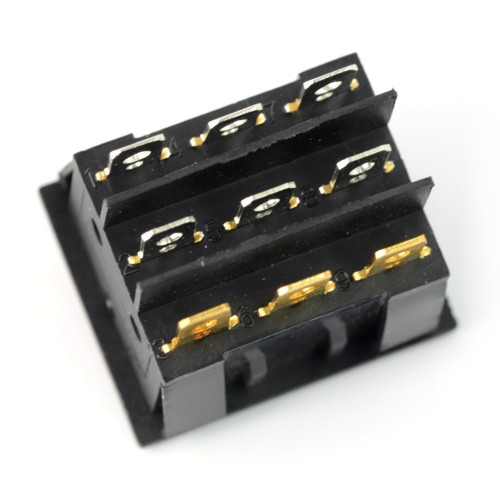

Rocker switch, triple RS203-6C3R - 250V/16A - red

Product Code: AN-12064
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-09
2.70€
Ex Tax: 2.23€

Qty

Rocker switch, triple, type of On-Off with backlight. It is equipped with 9 contacts with a load capacity of 250 V / 16 A. Pins pitch is 11 mm. The size of the switch is 40 x 36,2 x 22.6 mm.

Specification:

  • Contact load:
    • 250 V / 16 A
    • 125 V / 30 A
  • Number of contacts: 9
  • Number of positions: 2
  • Button color: red
  • Button type: rocker
  • Backlight: yes
  • Dimensions: 40 x 36.2 x 22.6 mm
