Robotics Arm Z1 Pro - Unitree

Brand: Unitree
Product Code: Robotics Arm Z1 Pro
Availability: On Order
Ask the manager for price

Qty

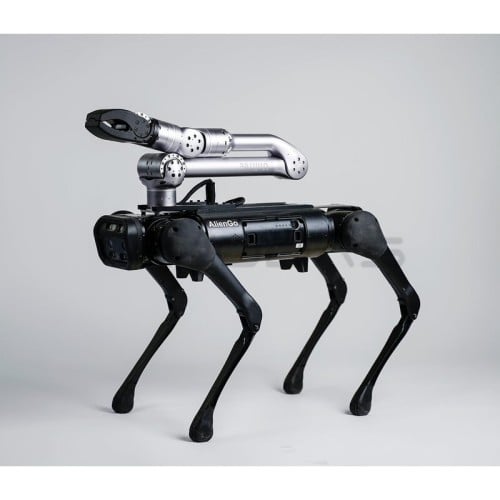

The Unitree Z1 Manipulator, in 6-DOF, is an arm designed for the B1 or Aliengo, with the possibility of using it on other mobile robots to perform complex tasks and explore different application scenarios. The built-in motors have a maximum torque of 33 N.m, which allows the arm a payload of 2 - 5 kg.

The manipulator control program and control interface are opened one after another, and various actuators can be quickly replaced at the end of the manipulator.

Main features:

  • Compact & Lightweight
  • Dexterous & Flexible
  • Sufficient Payload
  • Sufficient Accuracy
  • Support Joint Force Control
  • With Collision Protection

Specification:

  • Payload: 3 kg
  • Reach: 700 mm
  • Reduction Ratio: More than 60
  • Joint Force Control Accuracy: Approximately 0.2 Nm
  • IP Rating: Not specified (No IP rating)
  • Power Requirement Voltage: 24 V
  • User Control System: Ubuntu
  • Control Frequency: 1 KHz
  • Peak Power: 500 W (Complete Machine)
  • For Aliengo or B1
