RGB LED strip 5xUSB 5V LEDs - with pattern selector - round - Kitronik 35158

Brand: Kitronik
Product Code: AN-20602
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-06
11.30€
Ex Tax: 9.34€

Qty

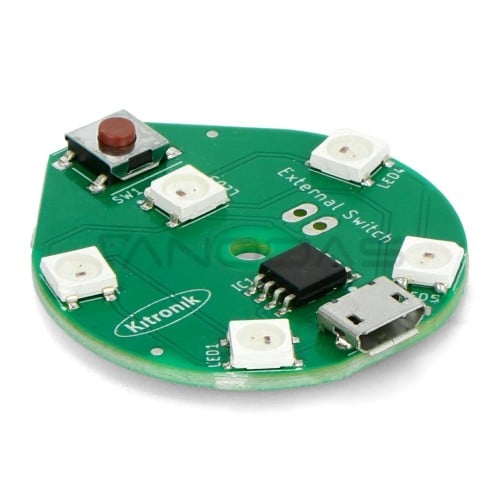

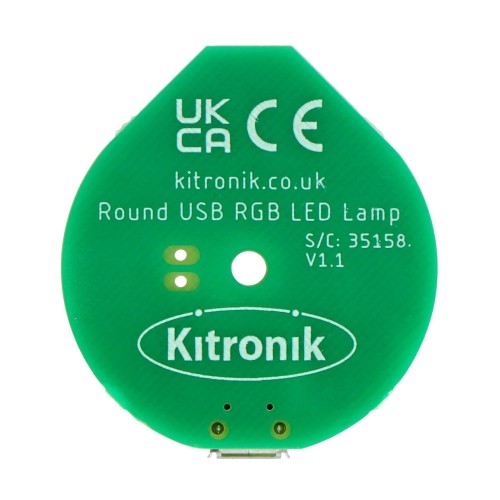

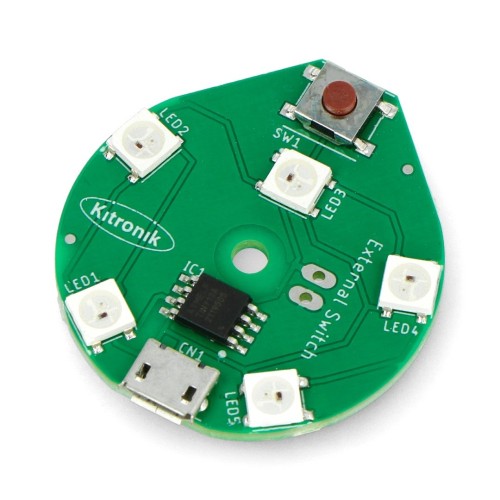

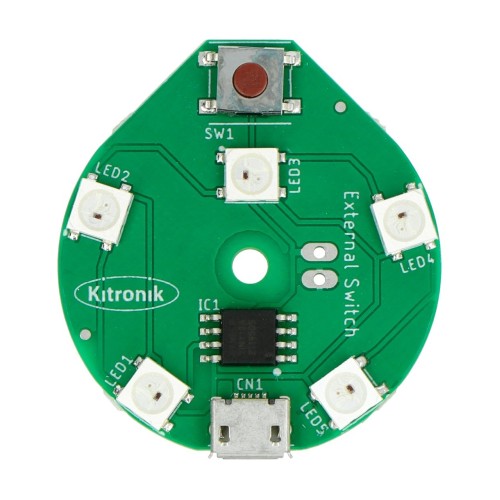

Round LED strip with a diameter of 36 mm from Kitronik. Equipped with 5 addressable RGB LEDs, designed to realize low power consumption models such as lighting office lights and accent lamps. The shape used makes the strip applicable when creating custom lighting projects. The board has a microUSB connector and is powered by 5 V coming from a USB port with the capacity of a desktop or laptop computer or by means of an appropriate power adapter.

Main features:
  • Provides an ideal low-power lighting solution dedicated to creating custom enclosures for computers and other devices, among other applications
  • Equipped with 5 addressable RGB LEDs, and thanks to the built-in pattern selector, the user can choose 4 different lighting patterns
  • Pattern selection is done by a button mounted on the end of the strip
  • Pressing the button will stop the fading of the current color
  • Pressing it again will start decreasing the brightness around the current color
  • Another press change to the RGB chain
  • Another press will turn off the LEDs
  • Pressing again will return the sequence to the first pattern
  • A microUSB connector is provided on the strip to power the module
  • Typical current consumption is 60 mA / momentary up to 90 mA at 5 V
Specification:
  • Type: LED strip
  • Shape: circle
  • LED type: addressable RGB
  • Number of LEDs: 5 pieces
  • Control mechanism: pattern selector
  • Number of available light patterns: 4
    • rainbow effect
    • solid color
    • blinking
    • RGB chain
  • Connector: microUSB
  • Supply voltage: 5 V
  • Dimensions:
    • diameter: 36 mm
    • height at highest point: 10 mm
    • mounting hole: 3.3 mm (M3)
