RGB LED Ring WS2812 5050x24 LEDs - 66mm

Product Code: AN-06957
Availability: 4-6 business days
Planned delivery date after ordering: 2025-07-15
9.20€
Ex Tax: 7.60€

Qty

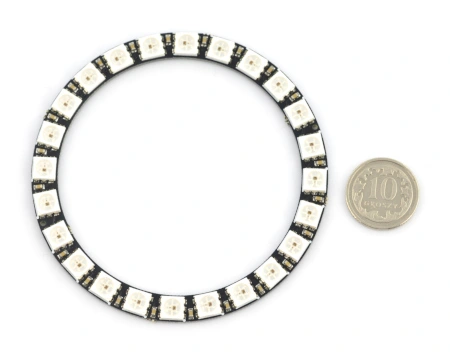

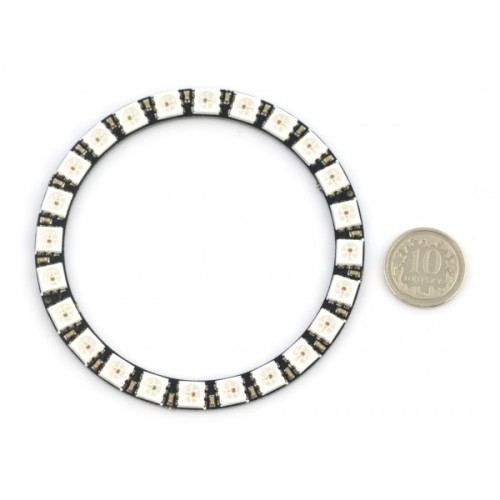

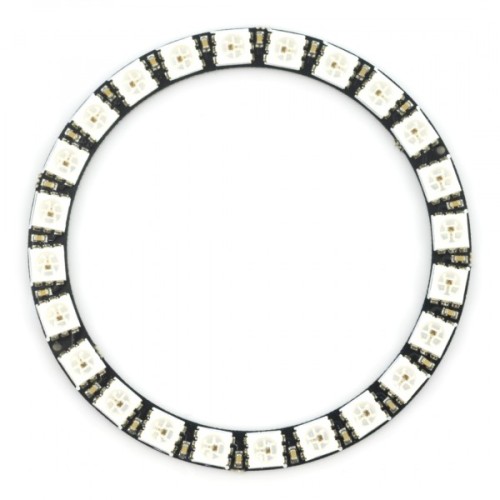

The diode ring consists of LED RGB WS2812 5050x24 - 66mm24 separately directed RGB LEDs with integrated controller. The module requires one microcontroller pin, e.g. Arduino. The LEDs are evenly spaced around a perimeter with an outside diameter of 66mm. Each of them consumes 18mA current, which in this case gives an overall approximate value. 440mA. The ring can be supplied with 5V voltage. The communication protocol used allows the LEDs to be connected in series. Another circuit should be connected to the output terminal, connecting 5V, GND and OUT to IN, respectively. The manufacturer notes that when working with more than 500 LEDs, the Arduino Uno system may not have enough RAM.

Specification:

  • Supply voltage: 5V
  • Current consumption: 18mA for a single diode
  • Applicable light: LED RGB WS2812
  • Number of LEDs: 24
  • Outer circle diameter: 66mm
  • Inner diameter circumference: 54mm
