RF antenna cable CFD400 - RP-SMA F/M - 5m - for SenseCAP M1 and fiberglass antenna - Seeedstudio 321990877

Brand: Seeedstudio
Product Code: AN-21266
Availability: Temporarily Out Of Stock
52.40€
Ex Tax: 43.31€

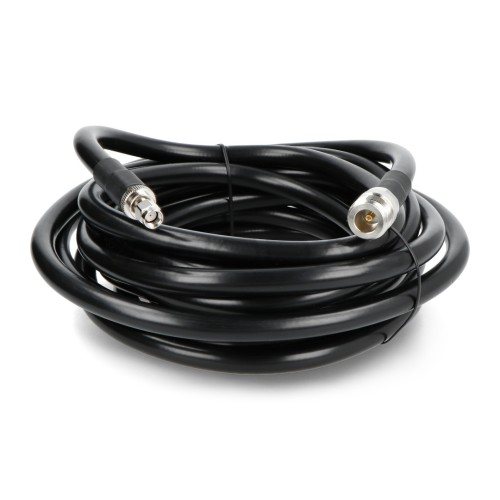

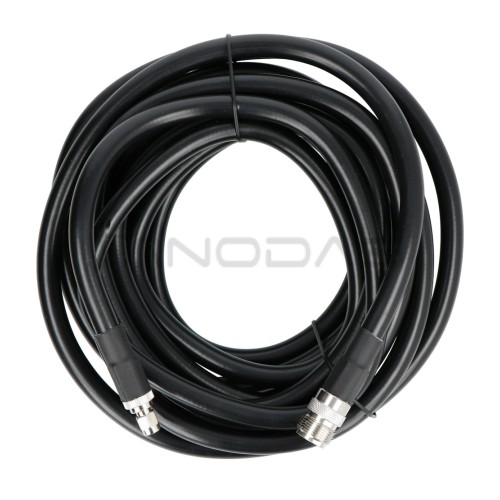

RF CFD400 antenna cable terminated with RP-SMA F/M connectors. Designed for use with the SenseCAP M1 gateway and fiberglass antennas, its length is 500 cm. The use of this type of cable significantly improves data transmission, allows for better coverage and ensures low signal loss.

Main features:
  • It has low insertion loss, which is typically 0.45 dB at 900 MHz
  • Low VSWR, typically 1.1 dB at 900 MHz
  • Made of solid materials that allow the cable to be used outdoors
  • The length of the cable allows for the implementation of unusual projects
Specification:
  • Cable type: antenna
  • Compatible devices: SenseCAP M1 and fiberglass antennas
  • Manufacturer part number: RF CFD400-BLACK
  • Frequency range: 0 Hz to 6000 MHz
  • Impedance: 50 Ohm
  • VSWR:
    • Typical: 1.1 dB / 900 MHz
    • Maximum: ≤1.5 dB / 6 GHz
  • Signal Strength Loss:
    • Typical: 0.15 dB / 900 MHz
    • Maximum: ≤1.5 dB / 6 GHz
  • Capacitance: 76 pF / m2
  • The velocity of Propagation: 85%
  • Cable Connectors:
    • 1: NF type - female
    • 2: RP-SMA type - male
  • Insulation resistance: > 1000 MOhm
  • Breakdown voltage: 2.5 kV
  • Cable length: 500 cm +/- 5 cm
  • Cable outer diameter: 10.3 mm
  • Bending radius: minimum 25.4 mm
  • Sheath material: PE
  • Conductor material: copper
  • Sheath material: tinned copper wire
