Reversing camera BLOW BVS-549 + MONITOR 7

Brand: Blow
Product Code: 78-600
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2025-05-09
48.80€
Ex Tax: 40.33€

Qty

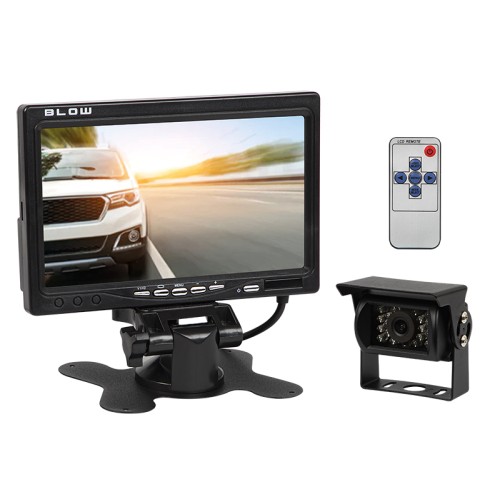

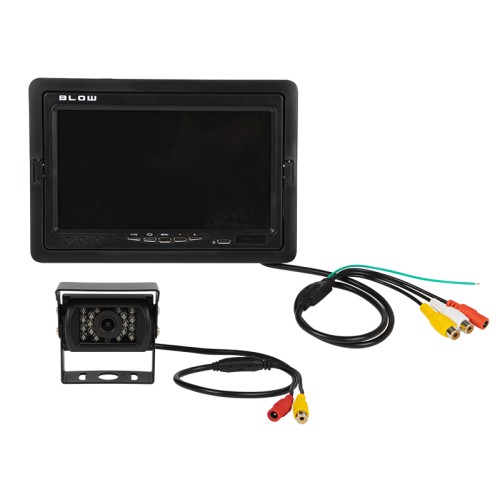

Camera BLOW BVS-549 + MONITOR 7" LCD TFT WITH 2 AV INPUT

The most important features of the BLOW BVS-549 camera:

  • The camera automatically turns on when reverse gear is engaged.
  • Wired infrared reversing camera
  • For trucks, buses and cars
  • Integrated high-quality IR diodes
  • Camera Suitable for any monitor with RCA video input.
  • The camera can be rotated vertically. The lens is made using Anti-Fog technology
  • The view from the camera has intuitive guide lines to make parking easier
  • The camera is waterproof and shockproof - IP67

Key features of the 7-inch LCD TFT monitor with 2 AV inputs:

  • The camera automatically turns on when reverse gear is engaged.
  • Easy-to-read 7-inch touchscreen
  • Ability to simultaneously connect two transmitters via RCA (Cinch)
  • The advantage of the TFT matrix is very good visibility of objects on the screen even in very bright sunlight.
  • The monitor is suitable for any video transmitter with RCA (Cinch) output.
  • The monitor works with intuitive guidance lines emitted by reversing cameras
  • The view from the camera has intuitive guide lines to make parking easier
  • Removable from the frame.

Ready to work in any conditions

The camera parameters ensure a good performance of the main tasks, which is video transmission behind the car - in particular, the very wide viewing angle of the image sensor and the horizontal image should be emphasized. Equipped with IR diodes - the camera works perfectly at night. The device has an IP67 water resistance rating, ensuring continuous operation even in rainy conditions. The kit includes the necessary cables to install the camera.

Safe reversing and parking

  • Parking a car in reverse is often a real challenge, especially in difficult terrain conditions, where visibility is very limited or there is very little space in the designated parking space. This task is even more difficult for delivery vehicles. The camera will give each driver an almost complete view of the space behind the vehicle, and the ability to vertically adjust the camera will allow you to adjust the viewing angle as needed.

The wide screen increases the comfort of use

  • Thanks to the 7-inch screen, the screen is perfectly readable. As a result, the driver can focus almost entirely on reversing the vehicle, which in turn increases the comfort and safety of other passengers and other road users.

BLOW BVS-549 Camera Specifications:

  • Image sensor: CMOS7070
  • Resolution: 658x582
  • Measuring area: 4.9x3.7
  • Lens: F = 2.5mm / F = 2.0
  • Signal system: PAL
  • Horizontal sync (kHz): 15625/15734
  • V-Sync (Hz): 50/60
  • Automatic gain control and backlight control: YES
  • Horizontal resolution: 420 TV lines
  • Minimum illumination: 1.00 lux
  • Signal to noise: < 48 [dB]
  • Viewing angle of the image sensor: 170°
  • Horizontal viewing angle: 120°
  • Vertical viewing angle: 90°
  • Diagonal viewing angle: 165°
  • Water resistance class: IP67
  • Voltage range: DC 12-24V
  • Video output: 1.0Vp-p / 75 Ω
  • Operating temperature: -20 ~ +70°C, RH 95% Max
  • Storage temperature: -30 ~ +80°C, RH 95% Max
  • Cable length to the camera: 50cm
  • Power cord length: 90cm
  • Length of video cable with monitor: 580cm

Specification 7 inch LCD TFT monitor with 2 AV inputs

  • Power supply: 12V / 24V
  • Energy consumption: 4.5W
  • Resolution: 840x480
  • Video format: PAL/NTSC
  • Matrix type: TFT
  • Screen size: 7'' 16:9
  • Number of video inputs: 2

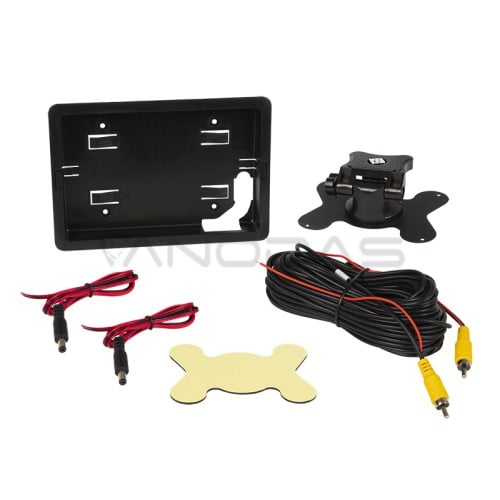

In the set:

  • BVS-549 reversing camera
  • 7 inch LCD TFT monitor with 2 AV inputs
  • Cables are required for camera installation
  • Car holder
  • Remote control
  • Stand pad
  • Users manual
