Reed Switch Actuator Piston Position Sensor AGUAC-004

Brand: QC - Quality Control
Product Code: MX-P-S-AGUAC-004
Availability: Temporarily Out Of Stock
42.40€
Ex Tax: 35.04€
  • Voltage: 5-240 AC/DC VV
  • Voltage drop: 3V
  • Response time: 1.8 ms
  • max. switching frequency: 200 Hz
  • Insulation resistance: >1GΩ
  • Function: normally open
  • Cable length: 100 cm
  • Cable diameter: 3 mm
  • Weight: 0.01 kg

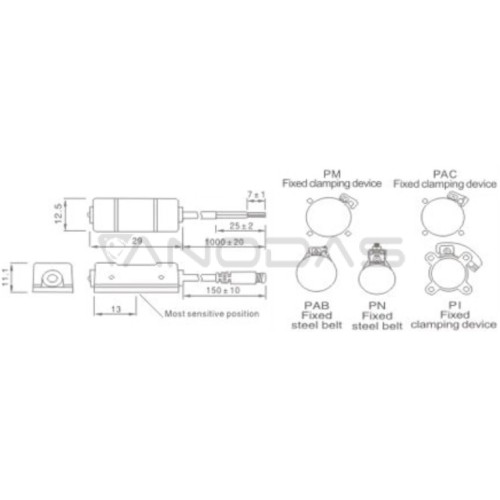

Installation method: with a band or a handle
Voltage range: 5-240V
Max power consumption: 10W
Max. voltage drop: 3V
Response time: 1.8 ms
Max. frequency switching: 200Hz
Insulation resistance: 1GΩ
Cable length: 1m
Wed. cable: 3.2mm
