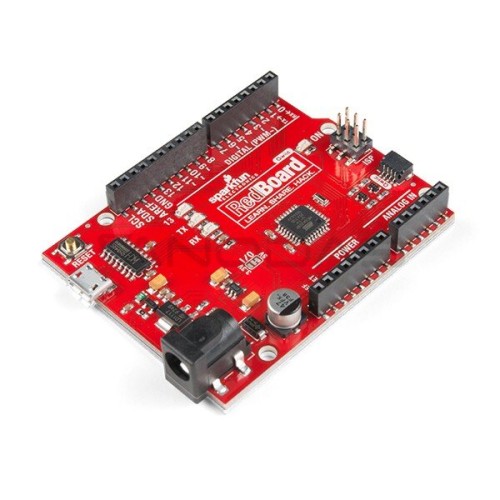

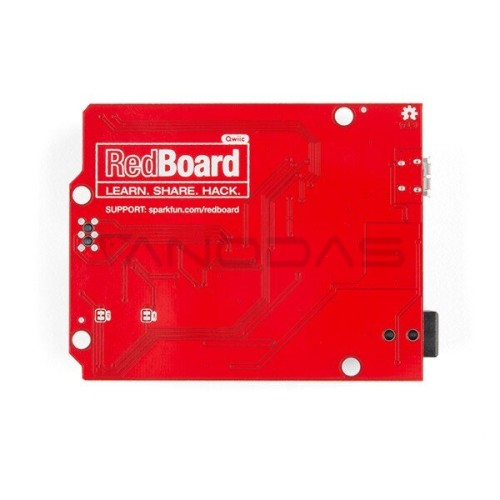

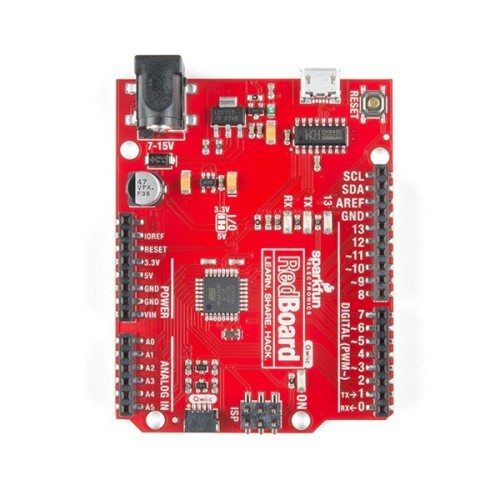

RedBoard Qwiic, Arduino compatible, SparkFun DEV-15123

A module made by SparkFun is fully compatible with the Arduino Uno. It has 14 digital input/outputs, 6 PWM channels, 6 analog inputs, as well as popular communication interfaces. The circuit board contains an FTDI chip and miniUSB connector.
SparkFun RedBoard Qwiic consistent with the plate, the development of the Arduino software, which uses some functions that are known from Arduino and contain several key improvements compared to the original RedBoard. A large part of Qwiic RedBoard uses a convenient system Qwiic Connect, which means that it does not require soldering or the expansion shield to connect it to the rest of the system.

Specification:

• ATmega328 microcontroller with Optiboot (UNO) bootloader
• CH340C serial-USB converter
• AP2112 voltage regulator
• A4/A5 jumpers
• 3.3 V to 5 V voltage level jumper
• Input voltage: 7-15 V
• 1 Qwiic connector
• 20 Digital I/O pins (6 PWM outputs and 6 analog inputs)
• ISP header
• 32 KB Flash memory
• 16 MHz clock speed
• All SMD construction
• R3 Shield compatible
• Improved reset button


Useful links:
Website of manufacturer
Manual
