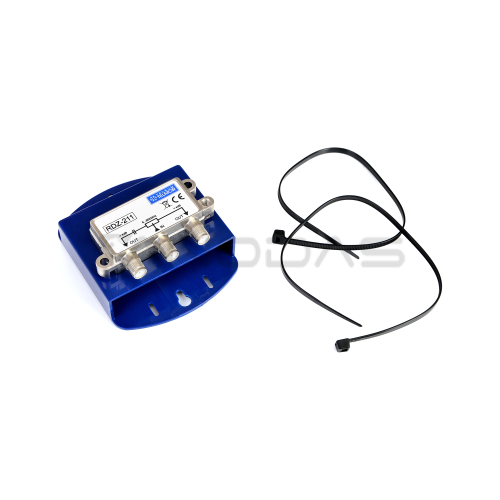

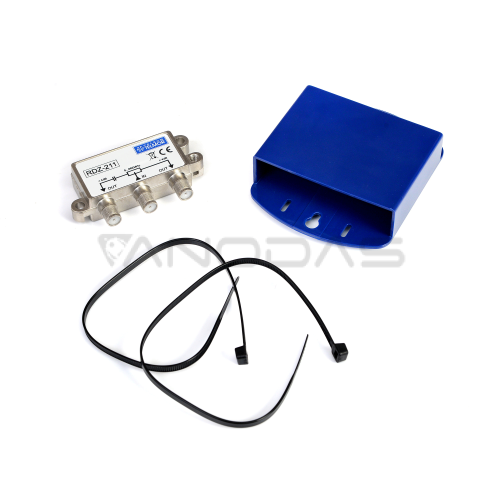

RDZ-211 Double Outdoor RF Splitter 5-862MHz 4.0dB F Level Outdoor TELKOM TELMOR
Brand: Telkom Telmor
Product Code: ZLA0937
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2024-11-22
Product Code: ZLA0937
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2024-11-22
Ex Tax: 8.18€
----------
TECHNICAL PARAMETERS
----------
Type: RDZ-211
Operating frequency range: 5-862 MHz
IN-OUT / IN-OUT loop attenuation: 4.0 dB / 4.0 dB
Output/output impedance: 75 Ohm / 75 Ohm
I/O connector type: F-socket / F-socket
DC component transfer IN-OUT: yes, +12 V (path without capacitor)
IN-OUT maximum carrying current: 250 mA
----------
CHARACTERISTICS
----------
RTV splitter/combiner
DC component transfer: +12 V/250 mA
Robust die-cast metal housing
Complete with splash-proof ABS housing
Simple assembly and connection

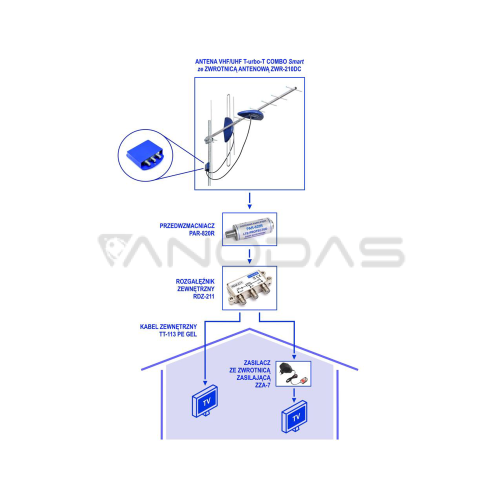

RDZ-211 is a splitter/combiner designed for use in collective and individual RTV antenna installations. Its task is to branch or combine 2-antenna signals. The RDZ-211 can be mounted in a splash-proof ABS cover, which makes it possible to place it outside the room, e.g. on an antenna mast. To ensure proper operation of the equipment, special attention should be paid to its proper installation and connection. The device can be used in situations where the signal level is high enough that its division, and thus reducing the level by 4dB, will not cause the final level in the subscriber socket to be below 51dBuV (minimum based on the PN-EN 60728-1 standard). ).
The device is recommended especially in cases where it is not possible to implement a "star" installation with cables from all sockets to one housing box, i.e. when the antenna cables are necessarily laid from the mast directly "on the facade of the building"
TECHNICAL PARAMETERS
----------
Type: RDZ-211
Operating frequency range: 5-862 MHz
IN-OUT / IN-OUT loop attenuation: 4.0 dB / 4.0 dB
Output/output impedance: 75 Ohm / 75 Ohm
I/O connector type: F-socket / F-socket
DC component transfer IN-OUT: yes, +12 V (path without capacitor)
IN-OUT maximum carrying current: 250 mA
----------
CHARACTERISTICS
----------
RTV splitter/combiner
DC component transfer: +12 V/250 mA
Robust die-cast metal housing
Complete with splash-proof ABS housing
Simple assembly and connection
RDZ-211 is a splitter/combiner designed for use in collective and individual RTV antenna installations. Its task is to branch or combine 2-antenna signals. The RDZ-211 can be mounted in a splash-proof ABS cover, which makes it possible to place it outside the room, e.g. on an antenna mast. To ensure proper operation of the equipment, special attention should be paid to its proper installation and connection. The device can be used in situations where the signal level is high enough that its division, and thus reducing the level by 4dB, will not cause the final level in the subscriber socket to be below 51dBuV (minimum based on the PN-EN 60728-1 standard). ).
The device is recommended especially in cases where it is not possible to implement a "star" installation with cables from all sockets to one housing box, i.e. when the antenna cables are necessarily laid from the mast directly "on the facade of the building"
