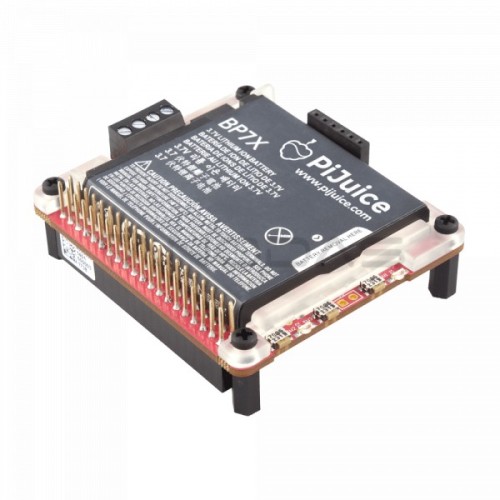

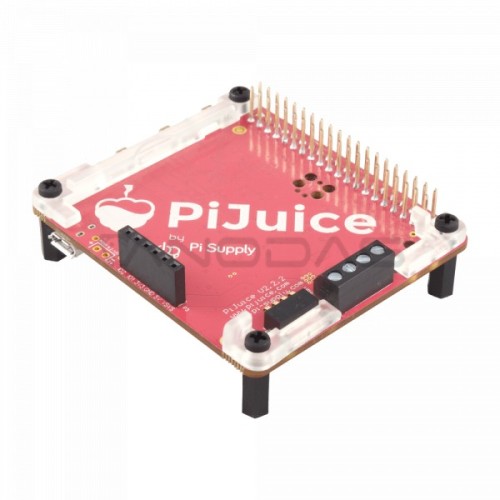

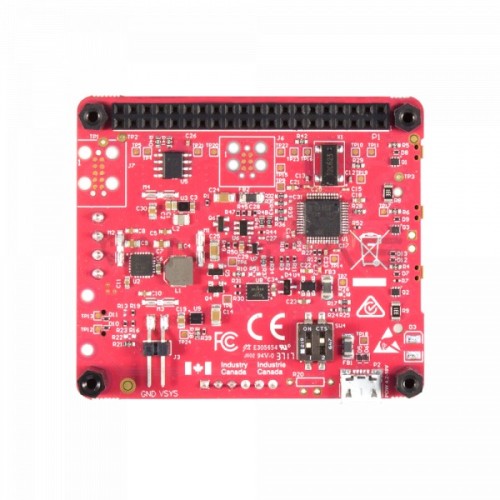

Raspberry Pi power supply PiJuice HAT + battery

Portable power supply platform for a min-computer Raspberry Pi. The module is based on ARM Cortex-M0. It has the original battery 1820 mAh from the Mororolla Droid 2 with the possibility of expanding with a battery with a capacity of 5000 mAh or even 10000 mAh. The battery can be charged using renewable energy sources such as solar or wind energy.

Technical data:

• Input voltage: 4.2 V to 10 V
• Input voltage: from 3.3 V to 5 V
• Output current: 2.5 A 5 V current depends on the battery capacity to reach a max of 2.5 A need a battery with a capacity of more than 3500 mAh
• AC I2C address
• Microcontroller: STM32F030CCT6 ARM Cortex-M0, 48MHz, F64KB, R8KB, I2C, SPI, USART, 2.4-3.6 V
• Battery: 1820 mAh
• Layout of the battery charger: battery charger Li-Ion/Pol BQ24160RGET - from 4.2 V to 10 V / 2.5 A
• System battery levelindicator: LC709203FQH-01TWG - Li-Ion, 1-cell, 2.8 per cent
• EEPROM: CAT24C32WI-GT3 EEPROM, I2C, 32KBIT, 400KHZ, 1V7-5V5
• Additional pin spring: Mil-Max 0929-7-15-20-77-14-11-0
• Optional output for external buttons connected to the same output, SW1
• Output 6-pin: two GPIO ARM Cortex-M0
• Outputs for additional solar panels, wind turbines, etc.
• Extra Shield RF: Harwin S02-20150300
• Built-in RTC
• Compatible with: Raspberry Pi 3 / 2 / B+ and Zero and Zero W
• Smart On/Off switch
• 2x programmable LED RGBs
• 3 programmable buttons
• Dimensions: 65 x 56 x 20 mm
• Weight: 57 g

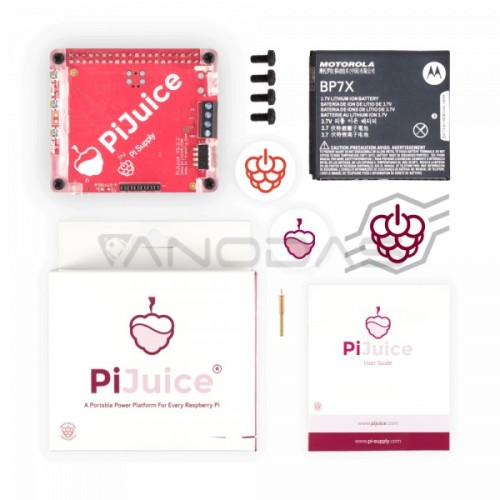

Included:

• PiJucie HAT
• 1x battery
• Guide for PiJuice
• 4x mounting racks
• 8x screws
• 1x Pogo pin
• 3x sticker
