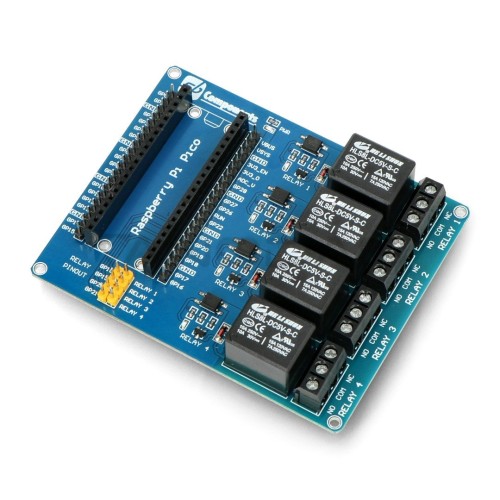

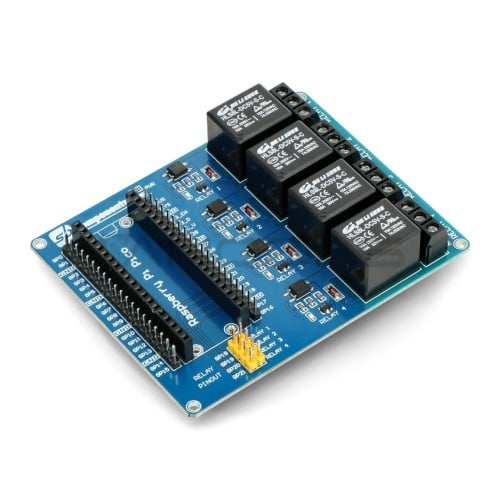

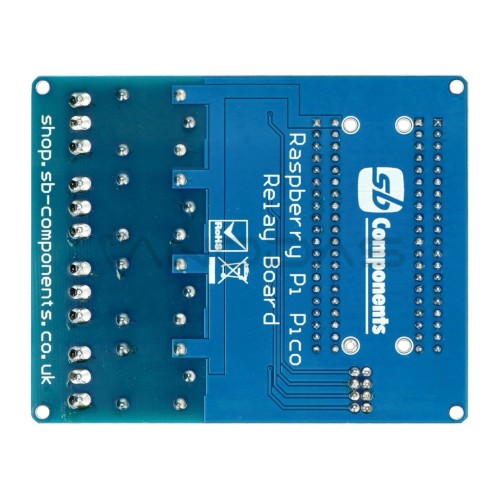

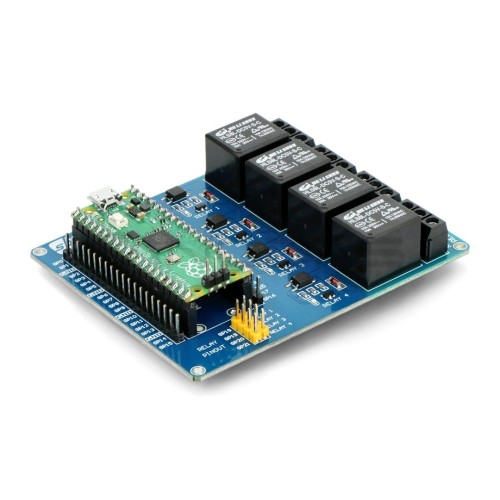

Raspberry Pi Pico Relay Board
Brand: SB components
Product Code: AN-19629
Availability: 4-6 business days
Planned delivery date after ordering: 2024-12-27
Product Code: AN-19629
Availability: 4-6 business days
Planned delivery date after ordering: 2024-12-27
Ex Tax: 26.36€
Relay module for Raspberry Pi Pico created by SB-Components company. The board comes with 4 relays and a socket to plug in the module with the Raspberry Pi Pico microcontroller. High-quality relays support 7 A / 230 V AC or 10 A / 30 V DC load. Additionally, each relay is equipped with an optocoupler, which allows the circuit to transmit an electrical signal between two isolated circuits using light energy. The optocouplers prevent high voltage in one part of the circuit from affecting the other part.
Main features:
Main features:
- 4 high quality relays rated at 7 A / 230 V AC or 10 A / 30 V DC
- Opto-isolation (CTR: 50% to 600% at IF = 5 mA, VCE = 5 V)
- Standardized board shape and design
- Relay status LEDs
- Jumpers to control relays with pins other than the default
- 40-pin Pico connector
- 40-pin external Pico GPIO pins
- Number of channels: 4
- Operating voltage: 5 V
- Switching voltage (VAC): 250 V / 7 A
- Switching voltage (VDC): 10 A / 30 V
- Dimensions: 74.4 x 93.2 mm
- Weight: 150 g
