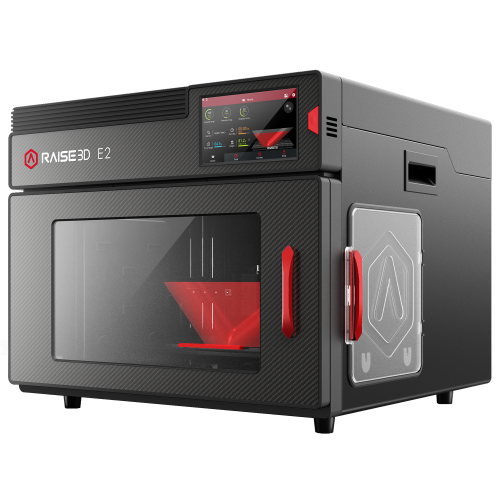

Raise3D E2 3D Printer

Brand: Raise3D
Product Code: PRM-5438
Availability: Temporarily Out Of Stock
3,749.00€
Ex Tax: 3,098.35€
Raise3D is known for reliable, easy to use and professional 3D printers. The current Raise3D E2 is an innovative 3D printer for the education sector. Achieve impressive results with Raise3D E2. It allows you to produce prototypes, tools and small series. Get started now with cost-effective additive manufacturing. For universities, schools and educational institutions, Raise3D E2 offers exclusive educational discounts.
Raise3D E2 is a high-quality, reliable and professional 3D printer
The Raise3D E2 is a high quality, reliable and professional 3D printer for education, prototyping and additive manufacturing. For universities, schools and training institutions, Raise3D E2 offers exclusive educational discounts. Achieve impressive results with two independent extruders.
The new E2 is accurate, reliable and affordable

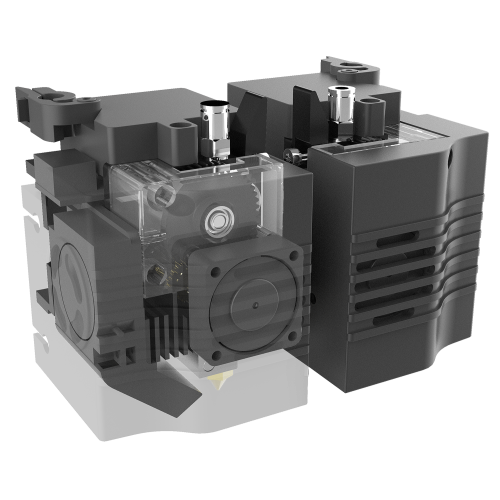

IDEX - Independent Twin Extruders
Mirror mode
Print symmetrical 3D models at a time. Greatly increases productivity.

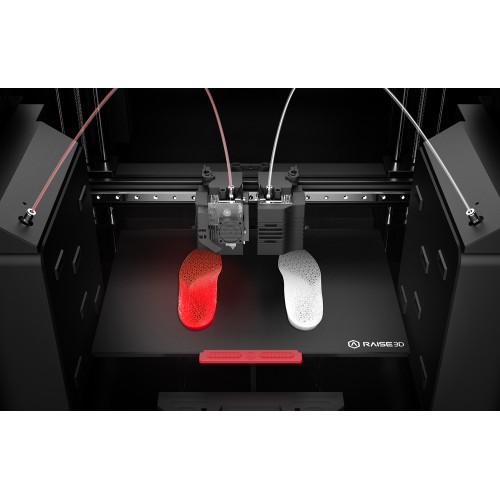

Duplication mode
Use both extruders for simultaneous printing. Doubles production capacity.
Compatible with various filaments up to 300℃
PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass fiber / Carbon fiber reinforcement / Metal particle filler / Wood filled
Intuitive user experience
Visual interface / Quick preview / Visual print progress / Full adjustment control
  • 7 inch touch screen
  • Integrated settings management
  • Help on screen
  • Visual model selection
  • The second generation electricity supply is renewed
  • New extruder with thread leakage sensor
HEPA air filter
  • Environmentally friendly
  • Designed to silently remove nanoparticles
Features:
  • An innovative 3D printer for education, prototyping and manufacturing
  • 2 independent IDEX extruders
  • Large working space: 330x240x240mm and automatic leveling of the base
  • Integrated plastic sensor, touch screen and remote monitoring
Specifications:
  • Type of nozzle used: Raise3D Pro2
  • Diameter of plastic used: 1.75 mm
  • Maximum tip temperature: 300 ºC
  • Open plastic system: Yes
  • Extruder Type: Direct Drive
  • Recommended maximum print speed: 150 mm/s
  • Working area: 240x330x240mm
  • Double working area: 240x295x240mm
  • Maximum working plate temperature: 110 ºC
  • Worktop surface: BuildTak
  • Work plate material: Flexible steel plate
  • Worktop fixing: Magnetic

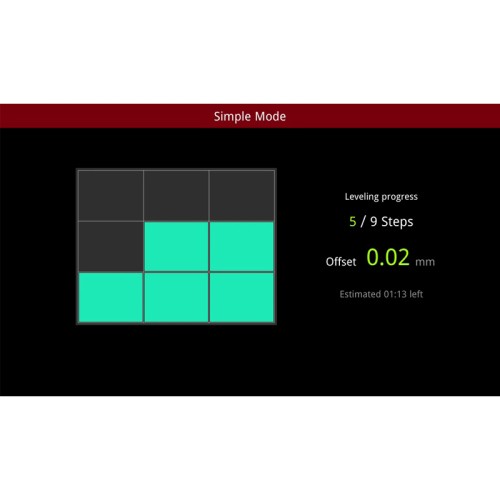

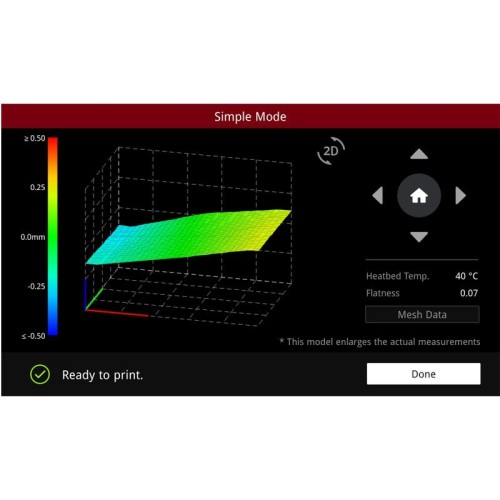

  • Worktop leveling system: Leveling grid with plane detection function
  • Working chamber during the process: Open or closed
  • Plastic chamber closed: Yes
  • Number of extruders: 2
  • Extruder construction type: Dual IDEX - independent dual extruders
  • Overall dimensions: 596mm x 607mm x 465mm
  • Total weight: 35 kg
  • Ambient working temperature: 15 °C - 30 °C
  • Maximum power consumption: 350 W
  • Voltage: AC: 100 V, 2 A / 230 V (50-60 Hz)
  • HEPA filter: Yes
  • Door sensor: Yes
  • Flow sensor: Yes
  • Power loss protection: Yes
  • Touch screen: Yes
  • Camera: Yes
  • Internal memory: Yes, 8 Gb
  • USB port: Yes
  • Ethernet port: Yes
  • WLAN: Yes
  • Cloud Management: Yes
  • Layer height: 0.01-0.25 mm
  • Delivery box: 680mm x 700mm x 690mm
  • Shipping weight: 42.701 kg
