Qwiic Joystick - SparkFun COM-15168

Brand: Sparkfun
Product Code: AN-21296
Availability: 4-6 business days
Planned delivery date after ordering: 2025-04-15
23.20€
Ex Tax: 19.17€

Qty

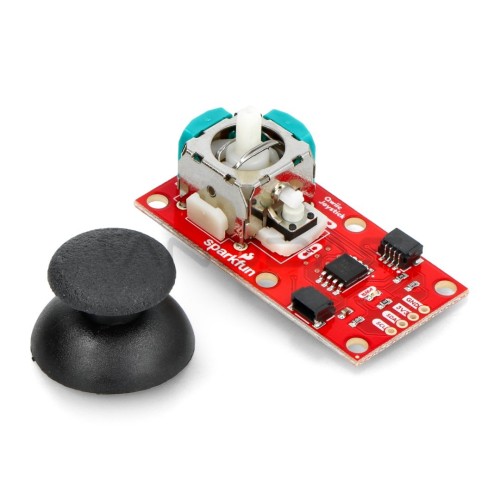

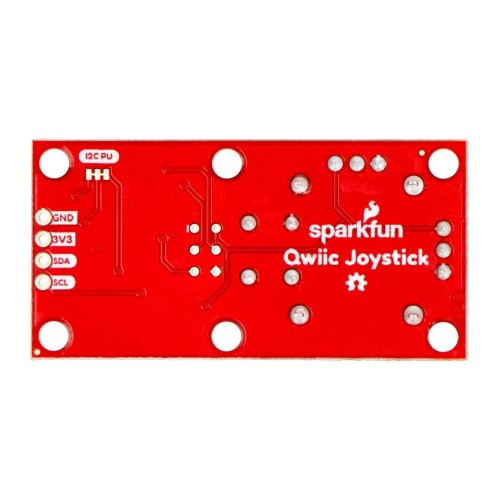

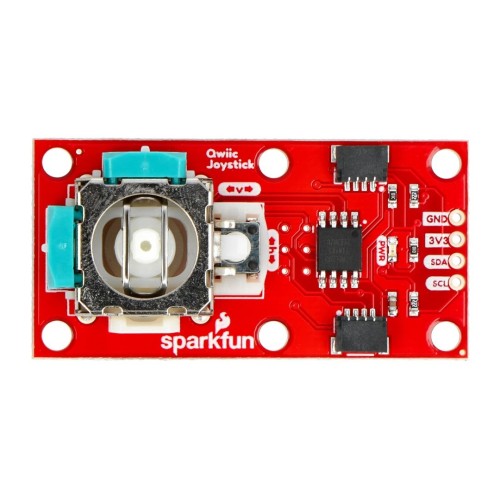

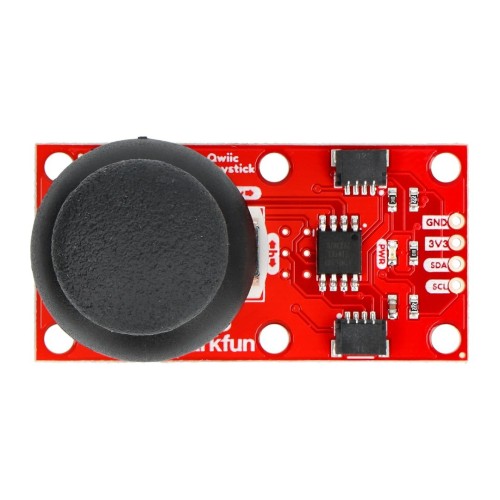

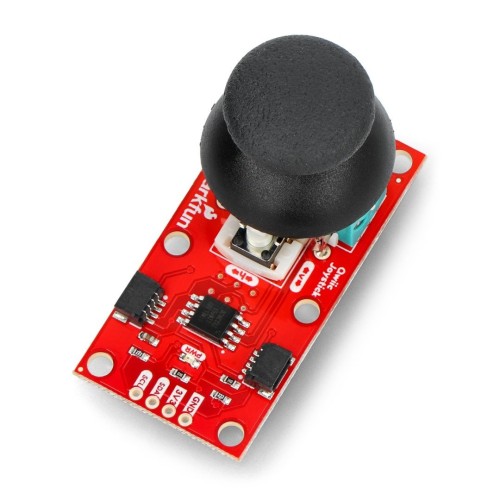

SparkFun board equipped with an analog 4-way joystick with a button from PlayStation 2. Apart from the joystick on the board, you can find two Qwiic connectors and the ATtiny85 system, as well as a 4-pin connector for soldering wires or goldpin connectors. With the ATtiny85 microcontroller, you can easily add a controller / HID to your project. It converts the analog signal to digital so that the module can be operated via the I2C interface.

Specification:

  • Connectors:
    • 2x Qwiic
    • 4-pin for soldering wires or goldpin strip
  • Interface: I2C
  • I2C address: 0x20, software selectable
  • ATtiny85 chip
  • Positions: X / Y, button
