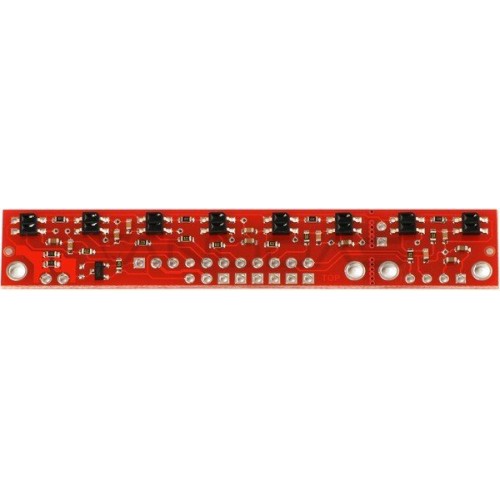

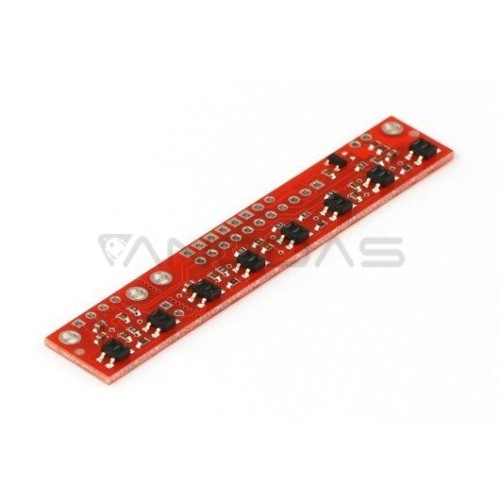

QTR-8RC reflectance sensor array, digital, Pololu 961

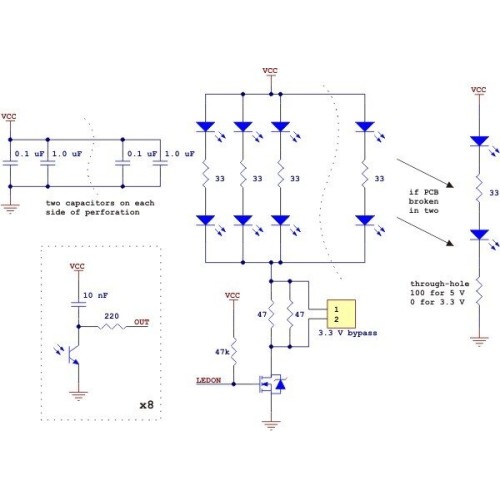

The system consists of eight reflective sensors (a pair: IR LED and phototransistor), it was designed to detect black lines on a white background. The reading is done by measuring the discharge time of the capacitor, with which connected are phototransistors. With this solution, the user should not use the A/D converter.

Specification:

• Dimensions: 75 x 127 x 4 mm
• Supply voltage: 5 V or 3.3 V
• Supply current: 100 mA
• The signal on output: digital (compatible with the I/O pins)
• Maximum measurement distance: 9.5 mm
• Weight: 3,09 g
