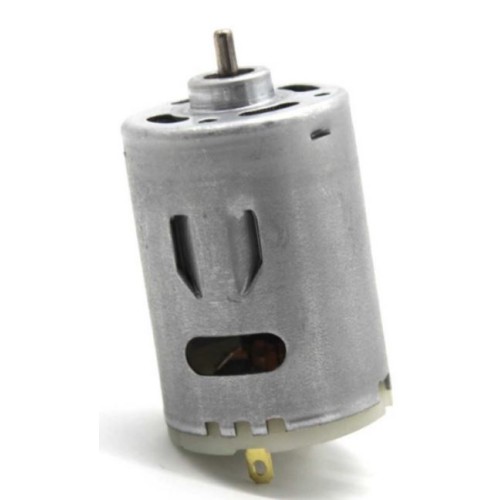

QSX-545 High Speed & Torque 6~12V Motor

Product Code: EL-224
Availability: Temporarily Out Of Stock
7.60€
Ex Tax: 6.28€

This is a high speed & high torque 6-12V motor.

Specifications

  • Voltage range: 6-12V
  • Motor speed:
  • 6V speed: 3500.no-load current: 0.23A, blocking current: 0.9A
  • 12V speed: 7000.no-load current: 0.3A, blocking current: 2.5A
  • Motor length: 50mm
  • Motor diameter: 35.5mm
  • Motor shaft diameter: 3.175mm
  • Motor shaft length: 6mm
  • Step diameter: 13mm
  • Step height: 4.5mm
  • Fixed aperture: 3mm
  • Mounting hole distance: about 25mm
