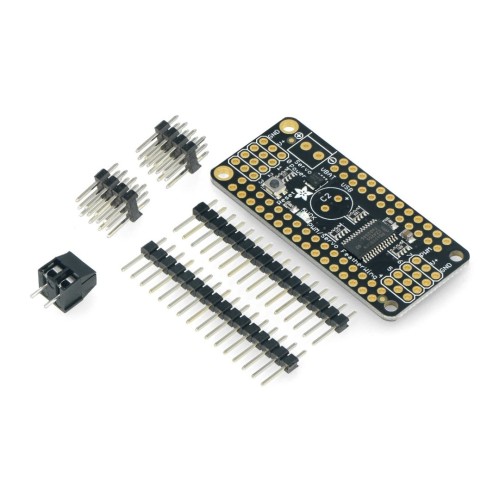

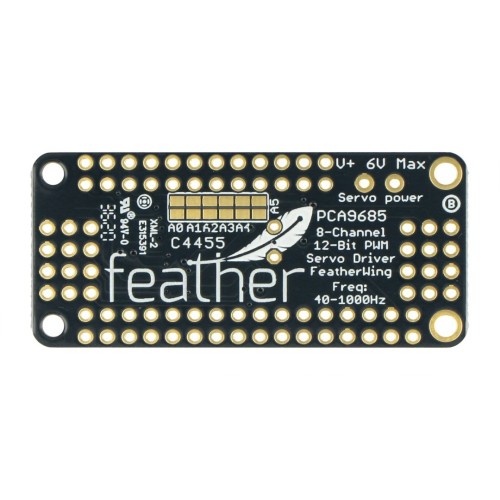

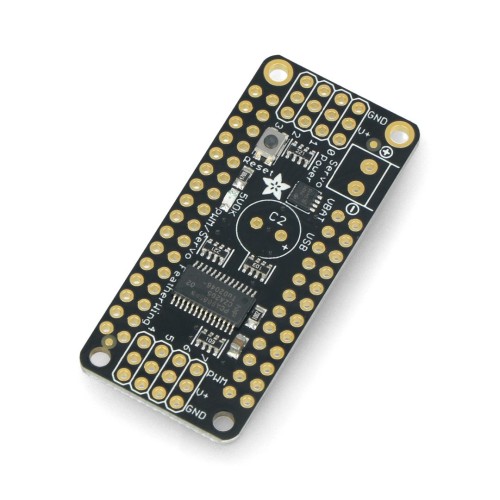

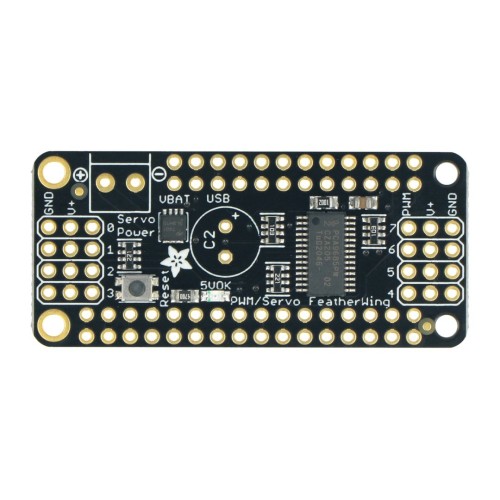

PWM motor and servo controller, I2C 8-channel, PCA9685, overlay for Feather, Adafruit 2928

• Control via I2C bus by PWM signal, so that the signal does not have to be transmitted continuously
• Voltage range from 3.3 V to 6 V supported
• Adjustable PWM frequency up to approximately 1.6 kHz
• Equipped with eight 12-bit control channels
• Reverse polarity protection on input terminal connectors
• Green LED indicating correct operation of the controller
• Clever design, which enables stacking of elements
• 220 Ohm series resistors placed on all output lines

• Compatible with Feather family modules
• Embedded chip: PCA9685
• Type: PWM motor driver
• Number of channels: 8
• Operating frequency: from 40 Hz to 1000 Hz
• Communication interface: I2C bus
• PWM frequency control: up to 1.6 kHz
• 12-bit resolution for each servo output, approximately 4 us at 60 Hz
• Configurable push-pull or open-drain output
• Dimensions: 50.8 x 22.9 x 1.6 mm
• Weight: 3.9 g

• Motor and servo driver - 8 channels
• Goldpin connectors - 2,54 mm pitch:
• 2x4 - x2
• 1x16 - x2
• Terminal connector - 1x2 (in black or blue - sent randomly)
