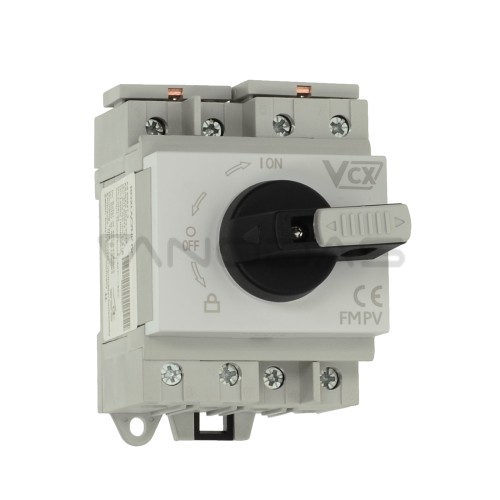

PV switch disconnector 4P 32A 1200VDC

Brand: VCX
Product Code: MX-ROZ-CZNIK-PV
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-07-21
61.60€
Ex Tax: 50.91€

Qty

An isolating switch is an electrical device that is used to isolate parts of an electrical system from other parts. This is important for safety as it allows the power to be turned off in the event of a fault or maintenance work being required. It is important to select the appropriate disconnector for a specific application, taking into account the technical parameters of the device as well as the operating conditions and environment in which it will be used.

Technical data:

  • Rated current: 32A DC
  • Rated voltage Ui: 1200 V DC
  • Operating temperature: -40 ~+ 85 degrees. C
  • Surge voltage: Uimp = 8kV
  • Degree of protection: IP20
  • As main switch: Yes
  • Rated continuous current: 32 A
  • Suitable for installation in distribution boards: Yes
  • As a service disconnect: Yes
  • Number of poles: 4
  • Type of switching element: Knob
  • Degree of protection (IP) of the front part: IP20
