Push Button 6cm - white - flat

Brand: OEM
Product Code: AN-12296
Availability: Temporarily Out Of Stock
3.50€
Ex Tax: 2.89€

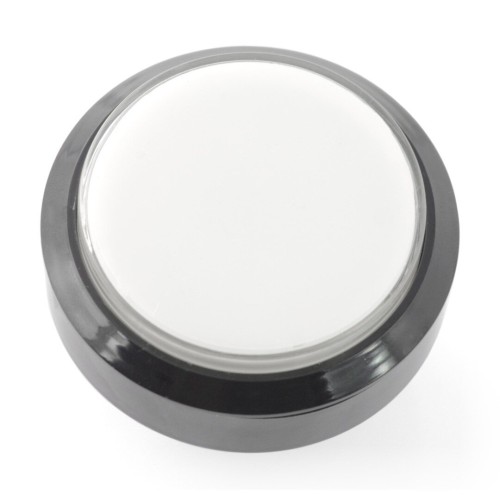

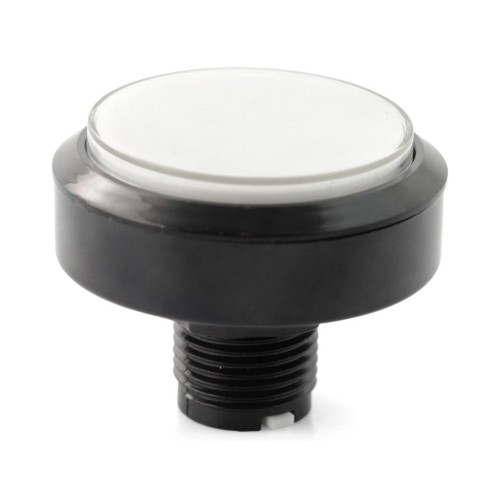

Large, flat button with an outer diameter of 6 cm with built-in LED illuminating the dome. This device can be mounted with screws located on the bottom or mounted to the counter by unscrewing the black ring. Contacts are the easy-to-connect limit switches.

Specification:

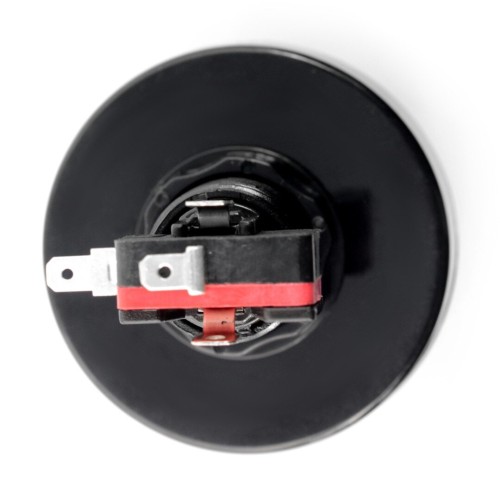

  • Pins - limit switch with two connectors
  • The limit switch can be replaced
  • Backlight - built-in LED is powered with the 5 V
  • Plastic mounting nut included
  • A possibility of taking off the ring of the button for mounting it to the counter's surface
  • Dimensions:
    • Outside diameter: 60 mm
    • Height: 50 mm
  • Mounting hole diameter: 24 mm
