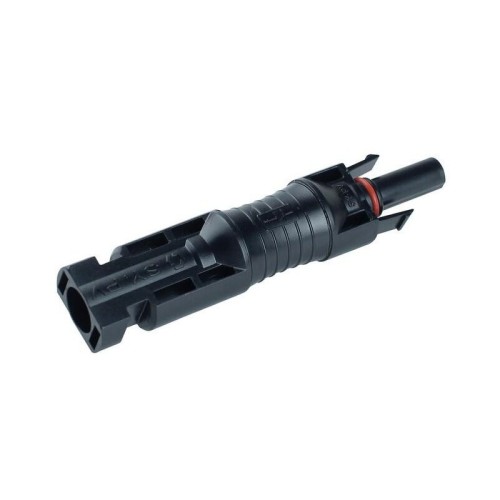

Protective diode for PV installations 20A

Product Code: A0025
Availability: Vilnius Store In Stock
Kaunas Store In Stock
Central Warehouse In Stock
9.90€
Ex Tax: 8.18€

Qty

Solar Protection Diode is compatible with MC4 series connectors. It protects solar panels in parallel connections. It protects against the flow of energy between the individual strings of solar batteries. The product is characterized by quick and simple connection and long-lasting operation.

Specification:

  • Voltage Range: 1000 V DC / UL 600 V DC
  • Rated current: 20 A
  • PIN dimension: 4.0 mm
  • Contact material: Tinned copper
  • Material: PPO
  • Protection grade: IP68
  • Test voltage: 8000 V (50 Hz/1min)
  • Working temperature range: -40 °C to 85 °C
  • Flammability class: UL94V - 0
